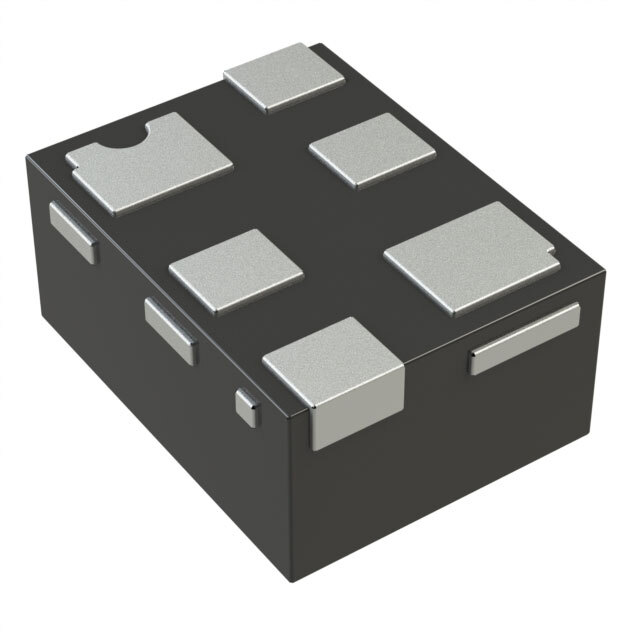

Same model may have multiple batches, images only for reference.
DMP32D9UDAQ-7B Diodes Incorporated – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

DMP32D9UDAQ-7B

Part No DMP32D9UDAQ-7B
Manufacturer Diodes Incorporated
Catalog FETs - Arrays
Description MOSFET 2P-CH 30V 0.22A 6DFN
Datasheet
DMP32D9UDAQ-7B Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor ProductsTransistorsFETs, MOSFETsFET, MOSFET Arrays
Manufacturer Diodes Incorporated
Packaging Bulk
Part Status Active
Technology MOSFET (Metal Oxide)
Configuration 2 P-Channel (Dual)
Drain to Source Voltage (Vdss) 30V
Current - Continuous Drain (Id) @ 25°C 220mA (Ta)
Rds On (Max) @ Id, Vgs 5Ohm @ 100mA, 4.5V
Vgs(th) (Max) @ Id 1V @ 250μA
Gate Charge (Qg) (Max) @ Vgs 350nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds 21.8pF @ 15V
Power - Max 360mW (Ta)
Operating Temperature -55°C ~ 150°C (TJ)
Grade Automotive
Qualification AEC-Q101
Mounting Type Surface Mount
Package / Case 6-SMD, No Lead
Supplier Device Package X2-DFN0806-6
Base Product Number DMP32
Ultra Librarian 3D Model Ultra Librarian DMP32D9UDAQ-7B CAD Model
