The DMHC10H170SFJ-13 is a state-of-the-art electronic component manufactured by Diodes Incorporated, a leading global manufacturer and supplier of high-quality application-specific standard products within the broad discrete, logic, analog, and mixed-signal semiconductor markets.

Key Features

• High Voltage Tolerance: This device is designed to handle high voltage applications, making it ideal for use in high power density and energy-efficient solutions.
• Low On-Resistance: The DMHC10H170SFJ-13 offers low on-resistance, which minimizes power loss and improves overall efficiency in circuits.
• Fast Switching Speed: With its fast switching capabilities, this product reduces switching losses and is suitable for high-frequency operations.

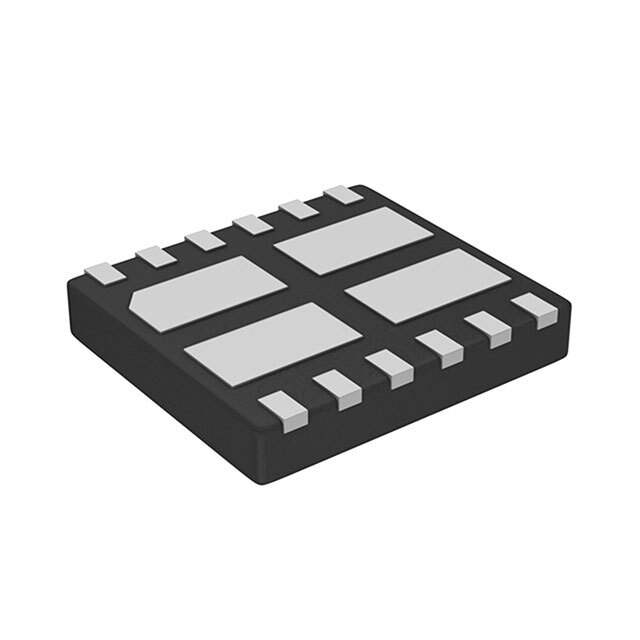

• PowerDI®5 Package: The device comes in the proprietary PowerDI®5 package from Diodes Incorporated, which offers a compact footprint and excellent thermal performance.
• RoHS Compliant: Compliance with RoHS standards ensures that the product is free of hazardous substances, making it environmentally friendly and safe for use in a wide range of applications.

Applications

The DMHC10H170SFJ-13 is versatile and can be used in various applications, including:

• Power management systems
• DC-DC converters
• Battery-powered devices
• Motor drives
• Power supplies for telecom and industrial use

Technical Specifications

Below are some of the technical specifications of the DMHC10H170SFJ-13:

• Voltage Rating: 170V
• Continuous Drain Current: 10A
• Pulsed Drain Current: 40A
• Power Dissipation: 3.8W
• Operating Temperature Range: -55°C to +150°C

The DMHC10H170SFJ-13 from Diodes Incorporated represents a blend of advanced semiconductor technology with robust design to deliver high performance and reliability for a wide array of power applications. Its compact size, energy efficiency, and thermal management features make it a smart choice for designers looking to optimize their power circuitry.
