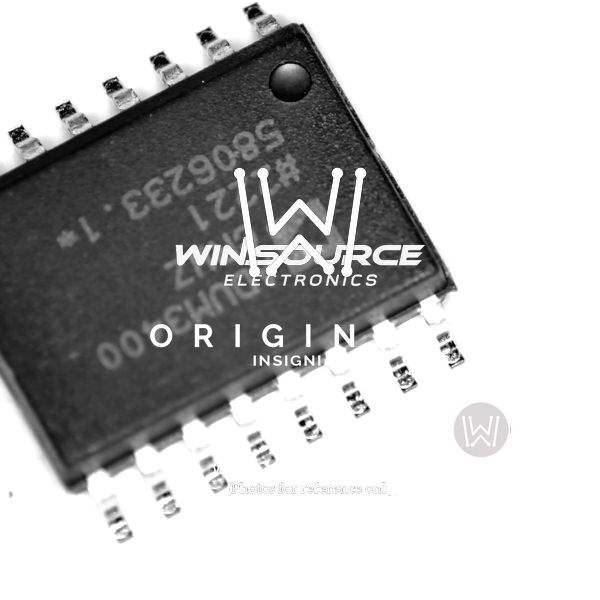

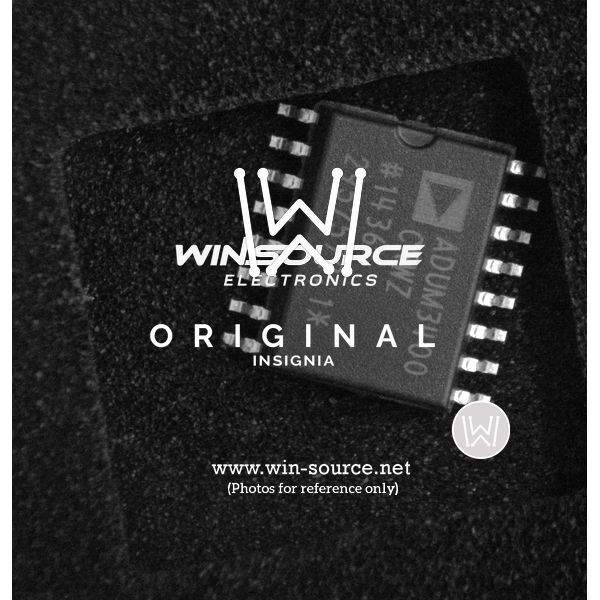

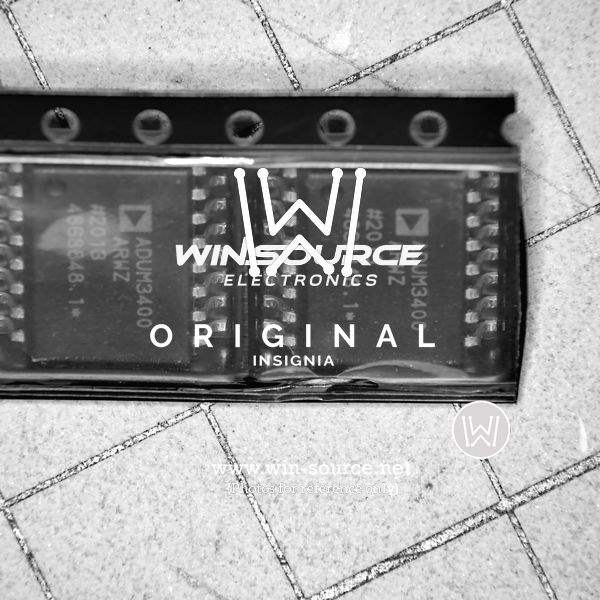

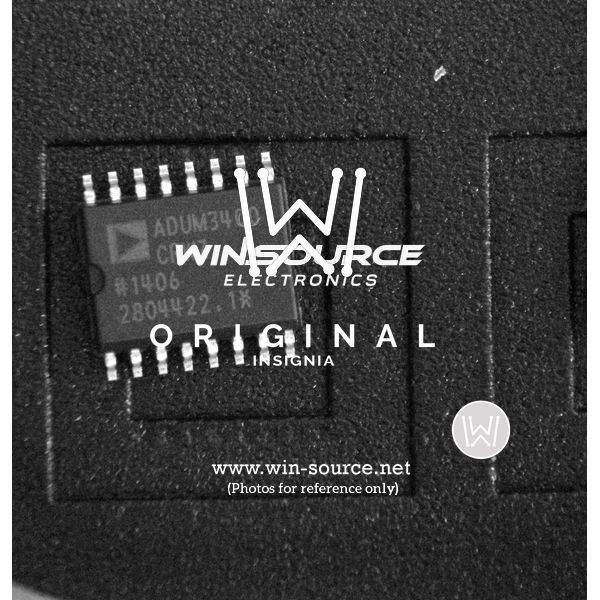

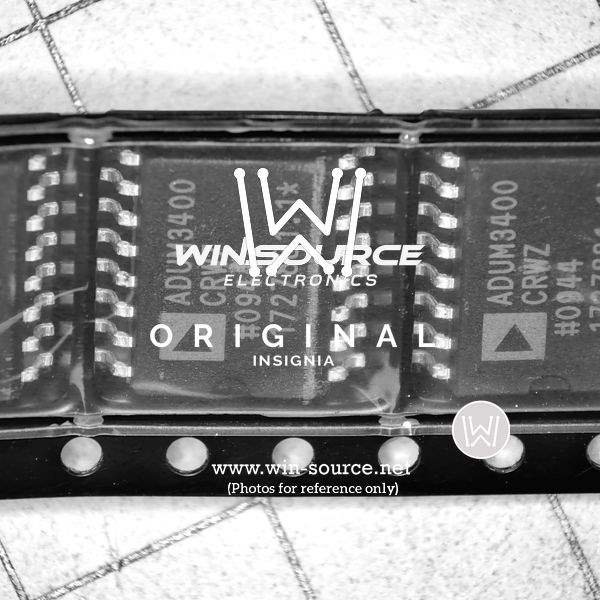

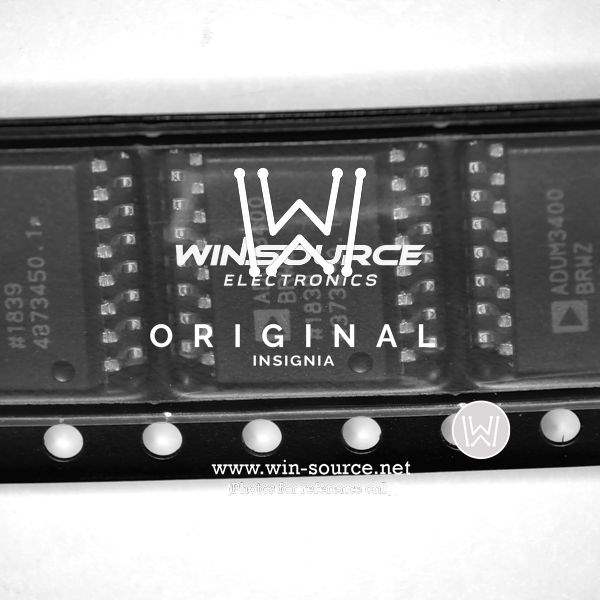

ADUM3400CRWZ Digital Isolator by Analog Devices Inc.

The ADUM3400CRWZ is a state-of-the-art digital isolator designed and manufactured by Analog Devices Inc., an industry leader in high-performance semiconductors. This innovative component provides robust isolation for digital signals, making it a vital element in applications that require electrical isolation for safety, noise immunity, and enhanced reliability.

Key Features

• Quad-Channel Isolation: The ADUM3400CRWZ features four independent isolation channels, which can be used to isolate digital signals in both directions.
• iCoupler® Technology: Utilizing Analog Devices' proprietary iCoupler technology, this digital isolator offers superior performance compared to optocouplers, with lower power consumption and higher data rates.
• High Data Rates: This component supports data rates up to 10 Mbps, catering to applications that require high-speed data transfer across isolation barriers.
• High-Voltage Isolation: The device is rated for a working voltage of 250Vrms, making it suitable for various industrial and commercial applications requiring high-voltage isolation.
• Wide Temperature Range: The ADUM3400CRWZ operates effectively across a wide temperature range from -40°C to +105°C, ensuring reliability and performance in harsh environments.
• Compact Packaging: Housed in a 16-lead SOIC wide-body package, it offers a compact solution for applications with limited space.

Applications

The ADUM3400CRWZ is versatile and can be used in multiple applications, including:

• Industrial automation and control systems
• Medical equipment with stringent safety requirements
• Isolated sensor interfaces and data acquisition systems
• Power supply and motor control circuits
• Communication systems requiring signal integrity

With its robust isolation capabilities and high-speed performance, the ADUM3400CRWZ by Analog Devices Inc. is an excellent choice for designers looking to enhance system safety and reliability without compromising on signal integrity or performance. Its integration into your design will ensure that your product meets the highest standards for electrical isolation and data communication.
