Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Diodes Incorporated
Packaging Reel
Diode Configuration 3 Independent
Diode Type Schottky
Voltage - DC Reverse (Vr) (Maximum) 40V
Current - Average Rectified (Io) (per Diode) 200mA (DC)
Voltage - Forward (Vf) (Maximum) at If 1V at 40mA
Speed Small Signal =
Reverse Recovery Time (trr) 5ns
Current - Reverse Leakage at Vr 200nA at 30V
Operating Temperature - Junction -55°C ~ 125°C
Mounting Style SMD
Manufacturer Package 6-TSSOP, SC-88, SOT-363
Supplier Device Package SOT-363
Family Part Number BAS40TW
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 752210-BAS40TW-7
Popularity Low
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian BAS40TW-7 CAD Model

Description

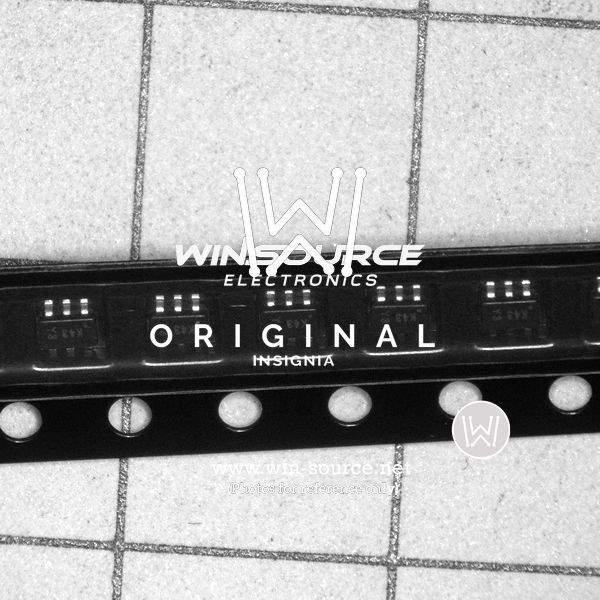

Diodes Incorporated BAS40TW-7 Schottky Diode

The BAS40TW-7 is a high-performance Schottky barrier diode designed by Diodes Incorporated, renowned for its efficiency and reliability. This diode is specifically engineered to offer a fast switching speed and a low forward voltage drop, making it a perfect choice for high-frequency applications and situations where energy efficiency is paramount.

The BAS40TW-7 features two diodes with a common cathode configuration, encapsulated in a compact SOT-363 package. This small footprint allows for high-density mounting on PCBs, which is essential for modern electronic devices that demand miniaturization without compromising on performance.

With its continuous forward current of 200mA and its low forward voltage drop, typically around 0.32V at 1mA, the BAS40TW-7 provides excellent conduction characteristics. The device's low power loss and high efficiency are critical attributes for power management in portable devices, such as smartphones, tablets, and laptops, as well as in solar cell applications, voltage clamping, and protection circuits.

The BAS40TW-7 is also characterized by its reverse voltage of 40V, which ensures that the diode can handle significant voltage stress during operation. Its fast reverse recovery time is ideal for high-speed switching applications, and the device's low leakage current helps to maintain the integrity of the signal and reduces power loss.

Robust by design, the BAS40TW-7 is built to withstand harsh conditions and is compliant with RoHS and Green standards, making it an environmentally friendly choice. The device's operating temperature range of -55°C to +150°C allows it to perform reliably in a wide range of environmental conditions, ensuring that it can be integrated into a variety of industrial and commercial applications.

Whether used in switching power supplies, DC-DC converters, or as a freewheeling diode, the BAS40TW-7 from Diodes Incorporated is an excellent choice for designers looking for a diode that combines efficiency, reliability, and compactness.
