Products specifications Report Issue?

Category Resistors>Through Hole Resistors
Mfr Panasonic Electronic Components
Series ERX
Package Cut Tape (CT),Tape & Box (TB)
Product Status Obsolete
Resistance 220 mOhms
Tolerance ±5%
Power (Watts) 2W
Composition Metal Film
Features Flame Proof, Safety
Temperature Coefficient ±350ppm/°C
Temperature Range - Operating -55°C ~ 235°C
Package / Case Axial
Supplier Device Package Axial
Dimension 0.157" Dia x 0.472" L (4.00mm x 12.00mm)
Number of Terminations 2
Base Product Number ERX-2
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0090
Other Names P16183TB,ERX2FJSR22E,P16183CT
Standard Package 500
Win Source Part Number 1095887-ERX-2FJSR22E
Ultra Librarian 3D Model Ultra Librarian ERX-2FJSR22E CAD Model

Description

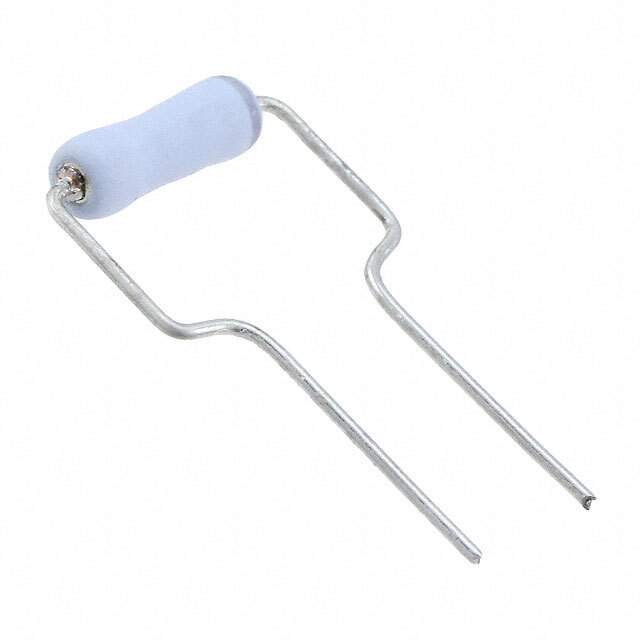

The ERX2FJSR22E is a Through Hole Resistor in the ERX series manufactured by Panasonic Electronic Components.

  • Resistor Type: Metal Film
  • Resistance: 220 mOhms
  • Power Rating: 2W
  • Tolerance: ±5%
  • Temperature Coefficient: ±350ppm/°C
  • Feature: Flame Proof
  • Package: Cut Tape (CT), Tape & Box (TB)
  • Standard Package: 500
  • Dimensions: 0.157" Dia x 0.472" L (4.00mm x 12.00mm)
  • Terminations: 2
  • Temperature Range: -55°C to 235°C
  • HTSUS: 8533.21.0090
  • ECCN: EAR99
