Diodes Incorporated AL8862SP-13 LED Driver IC

The AL8862SP-13 is a highly efficient, step-down DC/DC converter designed specifically for driving single or multiple series-connected LEDs. Manufactured by Diodes Incorporated, this LED driver IC offers an optimal solution for applications requiring constant current control for high-brightness LED illumination.

Key Features:

• Wide Input Voltage Range: The device operates from an input voltage range of 5V to 55V, making it versatile for use in various LED lighting applications, including commercial, industrial, and automotive systems.
• Adjustable Output Current: With an external resistor, the output current can be set up to 1A, allowing precise control over the LED brightness.
• High Efficiency: The AL8862SP-13 offers up to 97% efficiency, minimizing power loss and ensuring thermal management is more easily maintained.
• PWM and Analog Dimming: The device supports both pulse-width modulation (PWM) and analog dimming, providing flexible options for brightness control.
• Thermal Protection: Built-in thermal shutdown protection ensures the device operates within safe temperature limits, enhancing reliability and longevity.
• Soft Start: The soft-start feature limits inrush current during startup, contributing to the stability of the LED driver and the longevity of the LEDs.

Applications:

• LED Backlighting
• Architectural Lighting
• Commercial and Industrial Lighting
• Automotive and Signage Lighting

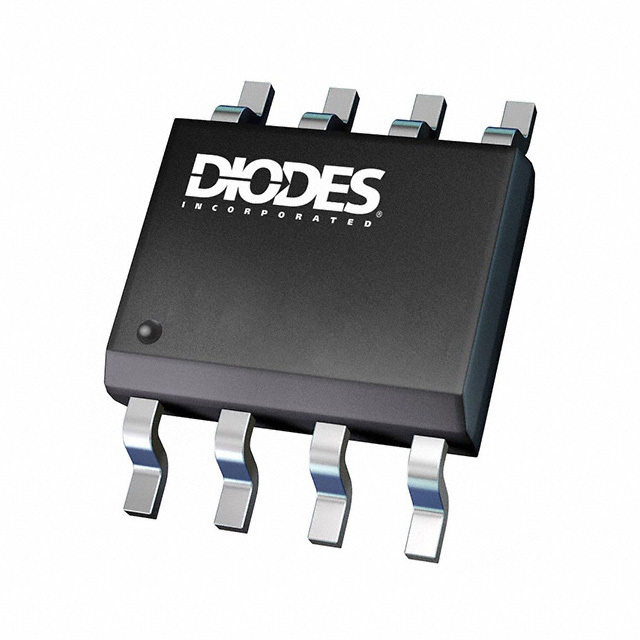

The AL8862SP-13 is available in a compact SOP-8EP package, making it suitable for space-constrained applications. Its robust design and comprehensive feature set ensure that it can drive LEDs with high reliability and performance, while simplifying the design process for engineers.

With its combination of efficiency, flexibility, and protection features, the AL8862SP-13 from Diodes Incorporated stands out as an excellent choice for a wide range of LED driving applications where consistent and controlled illumination is essential.
