Same model may have multiple batches, images only for reference.

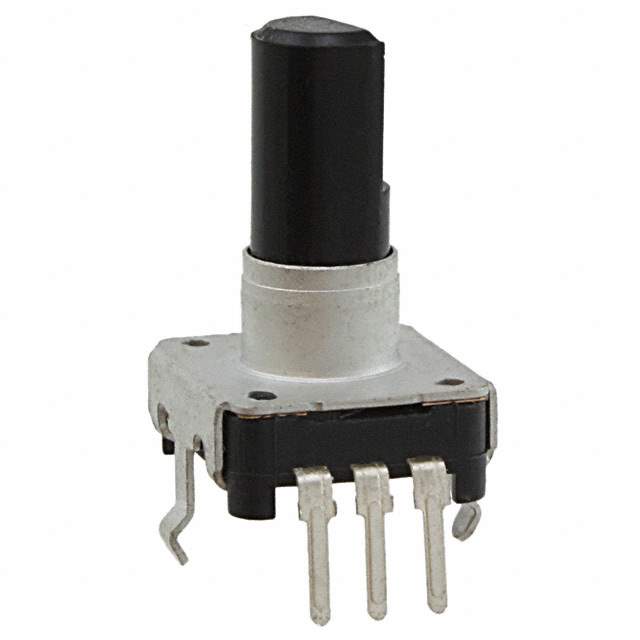

PEC12-4120F-S0012 Real Image
Same model may have multiple batches, images only for reference.

PEC12-4120F-S0012

Part No PEC12-4120F-S0012
Manufacturer Bourns Inc.
Catalog Encoders
Description ENCODER ROTARY 12MM VERT 24PPR / Mechanical Encoder Rotary Incremental Flat 0.02N.m Straight Quadrature Digital Square Wave 12PPR Through Hole PC Pin
Datasheet
PEC12-4120F-S0012 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer Bourns Inc.
Series PEC12
Part Status Obsolete(EOL)
Encoder Type Mechanical
Output Type Quadrature (Incremental)
Pulses per Revolution 12
Actuator Type 6mm Dia Flatted End
Detent Yes
Built in Switch Yes
Mounting PCB, Through Hole
Orientation Vertical
Termination Style PC Pin
Rotational Life (Cycles Min) 30K
Win Source Part Number 791681-PEC12-4120F-S0012
Popularity Medium
Supply and Demand Status Limited
Family Name PEC12
Introduction Date April 16, 2003
ECCN EAR99
Halogen Free Compliant
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian PEC12-4120F-S0012 CAD Model

Description

The Bourns Inc. PEC12-4120F-S0012 is a mechanical encoder with a quadrature output type and 12 pulses per revolution.

  • Quadrature Output Type: Quadrature
  • Pulses Per Revolution: 12
  • Mounting: Through Hole
  • Actuator Type: 6mm dia flatted end
  • Series: PEC12
  • Category: Sensors and Transducers
  • Rotational Life: 30K cycles min
  • Features: Detent, Built-in Switch
  • Status: Obsolete
  • Supply and Demand Status: Limited
