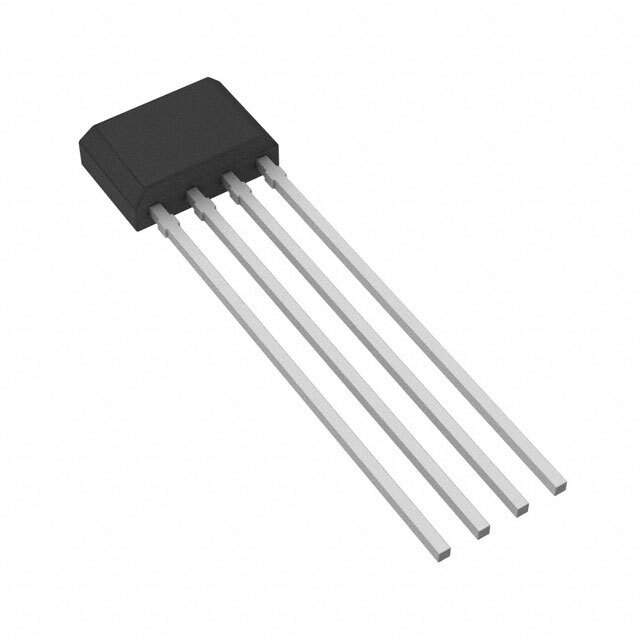

Product Overview: AH211Z4-AG1 by Diodes Incorporated

The AH211Z4-AG1 is a high-performance, precision Hall-effect switch designed and manufactured by Diodes Incorporated, a leading global manufacturer and supplier of high-quality semiconductor products. This device is engineered to detect magnetic fields with exceptional accuracy and convert the detected field strength into a digital output signal, making it an ideal component for a wide range of applications, including position sensing, proximity detection, and speed measurement.

Key Features

• Sensitivity and Precision: The AH211Z4-AG1 offers excellent sensitivity and precision, capable of detecting both north and south poles of a magnetic field. This allows for versatile positioning and polarity detection in various applications.
• Chopper Stabilized Design: The inclusion of a chopper-stabilized amplifier minimizes the offset drift and enhances stability over temperature variations, ensuring reliable performance under fluctuating environmental conditions.
• Low Power Consumption: Designed to be energy-efficient, this Hall-effect switch operates with a low supply current, making it suitable for battery-powered applications where power conservation is critical.
• High-Speed Operation: The device is capable of high-speed operation, which is essential for applications that require rapid response times and fast switching capabilities.
• Robust Output: The AH211Z4-AG1 features an open-drain output, providing a robust and flexible interface that can be easily integrated with other digital circuitry.

Applications

The versatility of the AH211Z4-AG1 allows it to be used in a variety of applications, including:

• Brushless DC motor commutation
• Flow meters
• Linear and angular position sensing
• Proximity detection
• Tachometers and speedometers

Quality and Reliability

Diodes Incorporated is committed to providing high-quality products, and the AH211Z4-AG1 is no exception. It is manufactured using industry-leading techniques that ensure high reliability and performance consistency. The device is also RoHS compliant, adhering to environmental standards and reducing hazardous substances in electronic components.
