Product Overview: AH1889-Z-7

The AH1889-Z-7 is a high-performance, ultra-sensitive unipolar Hall effect switch IC designed and manufactured by Diodes Incorporated, a leading global manufacturer and supplier of high-quality application-specific standard products within the broad discrete, logic, analog, and mixed-signal semiconductor markets.

This particular integrated circuit is engineered to detect magnetic fields with precision and reliability, making it an ideal component for a wide range of applications, including but not limited to position and proximity sensing, motor control, and flow meters. The AH1889-Z-7 operates with a supply voltage ranging from 2.5V to 5.5V, which allows for versatile usage in both battery-powered and line-powered systems.

One of the standout features of the AH1889-Z-7 is its high sensitivity to magnetic fields, which enables the detection of weak magnetic signals that other Hall effect switches might miss. This sensitivity, coupled with the unipolar switching characteristic, means that the device switches on with the presence of a south pole magnetic field and will remain on until the magnetic field is removed.

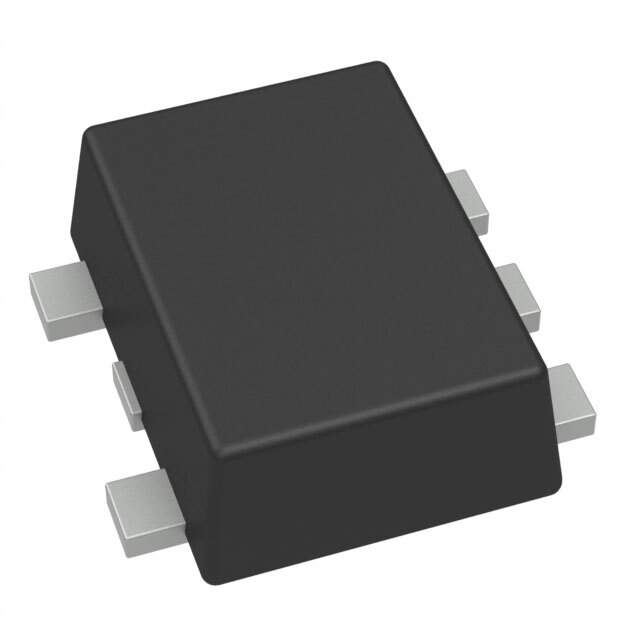

The compact SOT553 package of the AH1889-Z-7 makes it a space-saving solution for modern electronic devices where board space is at a premium. Additionally, the IC's chopper-stabilized design ensures temperature stability and minimizes the switch point drift, enhancing the reliability of the device over a wide temperature range.

Safety and protection features are also integral to the AH1889-Z-7's design. It includes a built-in reverse blocking diode to protect against reverse supply conditions. Furthermore, its robust construction ensures operation in harsh industrial environments, with the ability to withstand electrostatic discharge (ESD) events.

In summary, the AH1889-Z-7 from Diodes Incorporated represents a blend of sensitivity, reliability, and compactness, making it a top choice for designers who require a high-quality Hall effect switch for their next project.
