Product Overview: 1.5KE22CA-T from Diodes Incorporated

The 1.5KE22CA-T is a robust transient voltage suppression (TVS) diode designed by Diodes Incorporated to protect sensitive electronic equipment from voltage spikes and transients. This high-reliability component is specifically engineered to safeguard circuits against surges defined in industry-standard testing, ensuring that your devices operate safely and consistently.

Key Features

• Bi-directional Protection: The 1.5KE22CA-T offers bi-directional clamping, which is ideal for AC applications or where the polarity is reversible. This feature ensures that the device is capable of protecting circuits from surges coming from any direction.
• High Surge Capability: With its peak pulse power dissipation of 1500 Watts at 10/1000μs waveform, this TVS diode can handle significant surge events, providing confidence in its protective capabilities.
• Breakdown Voltage: This component has a stand-off voltage of 18.8 volts, with a minimum breakdown voltage of 20.9 volts, ensuring it activates to protect circuits at the appropriate threshold.
• Operating Temperature Range: The 1.5KE22CA-T is designed to operate efficiently over a wide temperature range from -55°C to +175°C, making it suitable for harsh environmental conditions.

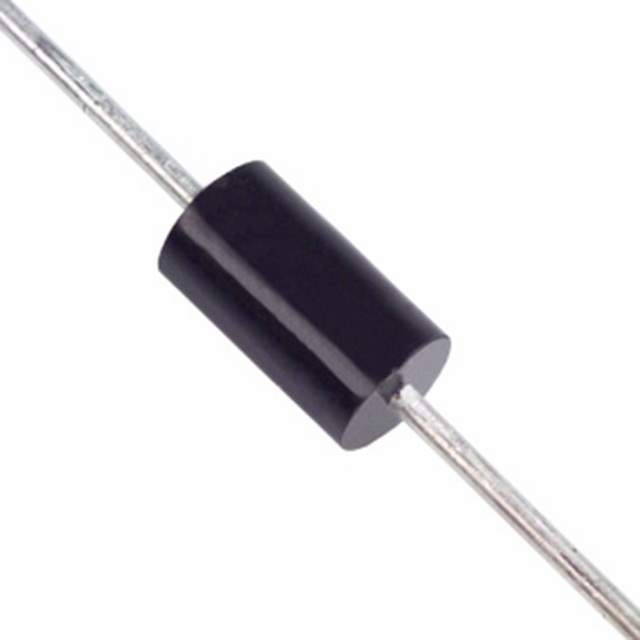

• Package: The device is available in a molded plastic case, which provides a rugged exterior to withstand mechanical stress and environmental factors. It is offered in the axial-lead package for easy integration into a variety of circuit designs.

Applications

The 1.5KE22CA-T diode is versatile and can be used in a wide array of applications, including:

• Industrial systems
• Consumer electronics
• Telecommunication devices
• Power supply protection
• Automotive electronics
• Computer systems

This TVS diode is a critical component for any design where electronic equipment must be protected from electrical threats such as lightning strikes, electrostatic discharge (ESD), and other induced voltage surges. The 1.5KE22CA-T is a testament to Diodes Incorporated's commitment to providing high-quality, reliable protection solutions for a vast range of electronic applications.

For detailed specifications and application notes, designers and engineers are encouraged to consult the datasheet and technical resources provided by Diodes Incorporated.
