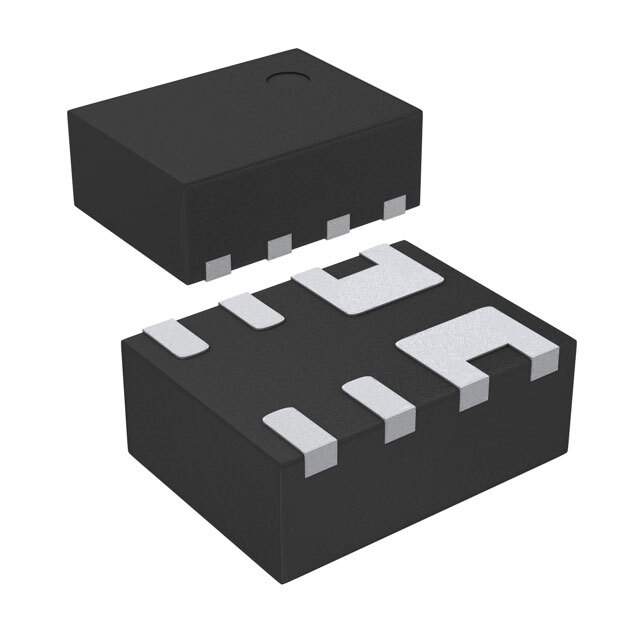

Same model may have multiple batches, images only for reference.

SLG59M301VTR

Name: SLG59M301VTR
Brand: Dialog Semiconductor GmbH
SKU: 326021
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	SLG59M301VTR
Manufacturer	Dialog Semiconductor GmbH
Catalog	HOT - SALES and EOL Components
Description	Short Circuit Current Limit / LOAD SWITCH, INTEGRATED CHARGE P
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Integrated Circuits
Manufacturer	Dialog Semiconductor GmbH
Packaging	Reel
Switch Type	General Purpose
Output Configuration	High Side
Output Type	N-Channel
Supply Voltage	2.5V ~ 5.5V
Current - Output (Maximum)	4A
Rds On	7.8mOhm
Input Type	CMOS
Temperature Range - Operating	-20°C ~ 70°C
Manufacturer Package	8-PowerWFDFN
Supplier Device Package	8-FC-TDFN (1.5x2)
Manufacturer Pack Quantity	1
MSL Level	1 (Unlimited)
Win Source Part Number	326021-SLG59M301VTR
Is this a common-used part?	Yes
Popularity	High
Supply and Demand Status	Balance
ECCN	EAR99
Country of Origin	Taiwan
Estimated EOL Date	2030
Ultra Librarian 3D Model	Ultra Librarian SLG59M301VTR CAD Model

Alternative Products

Description

The SLG59M301VTR is a N-channel high side switch designed for general purpose applications by Dialog Semiconductor GmbH.

Maximum Output Current: 4A
Output Configuration: High Side
Switch Type: CMOS
Supply Voltage: 2.5V to 5.5V
Package: 8-FC-TDFN (1.5x2)
Temperature Range: -20°C to 70°C
Rds On: 7.8mOhm
Application: Integrated Circuits
Popularity: High
Estimated EOL Date: 2030
Supply and Demand Status: Balanced
