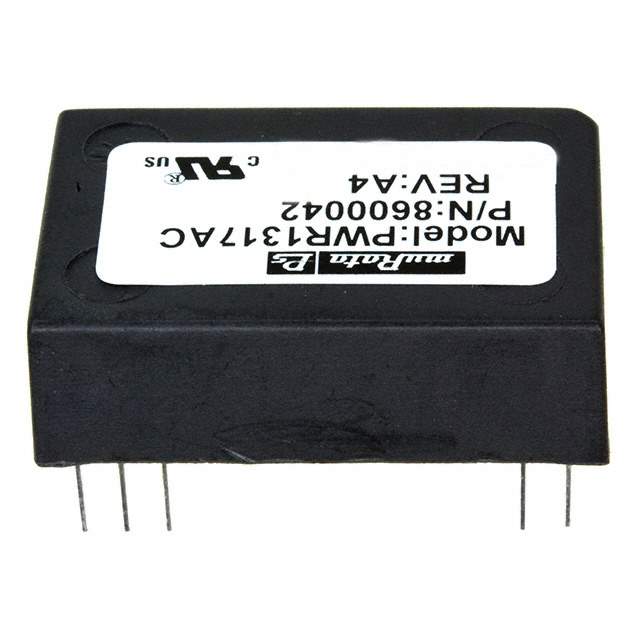

Same model may have multiple batches, images only for reference.

PWR1317AC

Name: PWR1317AC
Brand: Murata Power Solutions Inc.
SKU: 1209496
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	PWR1317AC
Manufacturer	Murata Power Solutions Inc.
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER +/-15V 2W / Isolated Module DC DC Converter 2 Output 15V -15V 50mA, 50mA 13.5V - 16.5V Input
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount>DC DC Converters
Mfr	Murata Power Solutions Inc.
Series	PWR13xxC (1.5W)
Package	Tube
Type	Isolated Module
Number of Outputs	2
Voltage - Input (Min)	13.5V
Voltage - Input (Max)	16.5V
Voltage - Output 1	15V
Voltage - Output 2	-15V
Current - Output (Max)	50mA, 50mA
Power (Watts)	2 W
Voltage - Isolation	4 kV
Applications	ITE (Commercial)
Temperature Range - Operating	-55°C ~ 100°C
Efficiency	75%
Mounting Type	Through Hole
Package / Case	24-DIP Module, 9 Leads
Dimension	1.27" L x 0.81" W x 0.40" H (32.3mm x 20.5mm x 10.2mm)
Base Product Number	PWR13
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
Other Names	811-1819-5
Standard Package	51
Win Source Part Number	1209496-PWR1317AC
Ultra Librarian 3D Model	Ultra Librarian PWR1317AC CAD Model

Alternative Products

Description

The PWR13xxC (1.5W) series isolated module is a DC-DC converter designed for ITE (Commercial) applications.

Type: Two-Output Converter
Power Rating: 2W
Voltage Isolation: 4 kV
Efficiency: 75%
Package: 24-DIP module with 9 leads
Mounting Type: Through Hole
Operating Temperature: -55°C to 100°C
Dimensions: 1.27" L x 0.81" W x 0.40" H (32.3mm x 20.5mm x 10.2mm)
Manufacturer: Murata Power Solutions Inc.
Other Name: 811-1819-5
