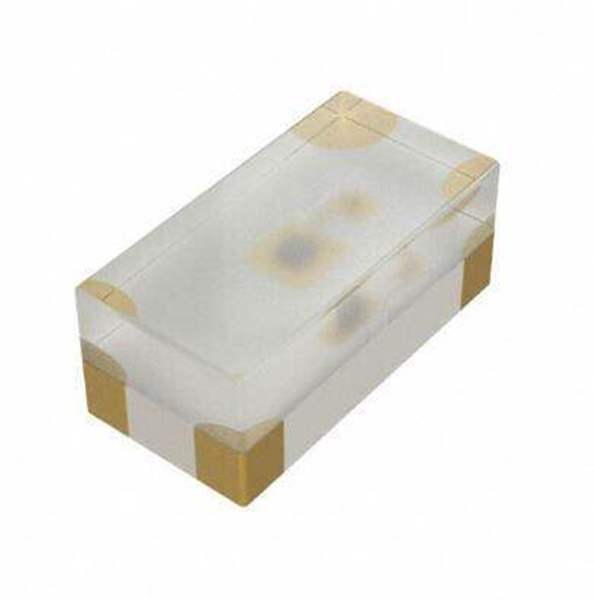

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Win Source Part Number Cross
Manufacturer Dialight
Category Optoelectronics LED Indication - Discrete
Product Status Active
Lens Style Rectangle with Flat Top
Lens Size 1.00mm x 0.50mm
Voltage - Forward (Vf) (Typ) 1.6V
Wavelength - Dominant 635nm
Package / Case 0402 (1005 Metric)
Size / Dimension 1.00mm L x 0.50mm W
Height (Max) 0.60mm
Win Source Part Number WS1209694-5988A10107F
Ultra Librarian 3D Model Ultra Librarian 5988A10107F CAD Model

Description

Red 635nm LED Indication - Discrete 1.6V 0402 (1005 Metric)
