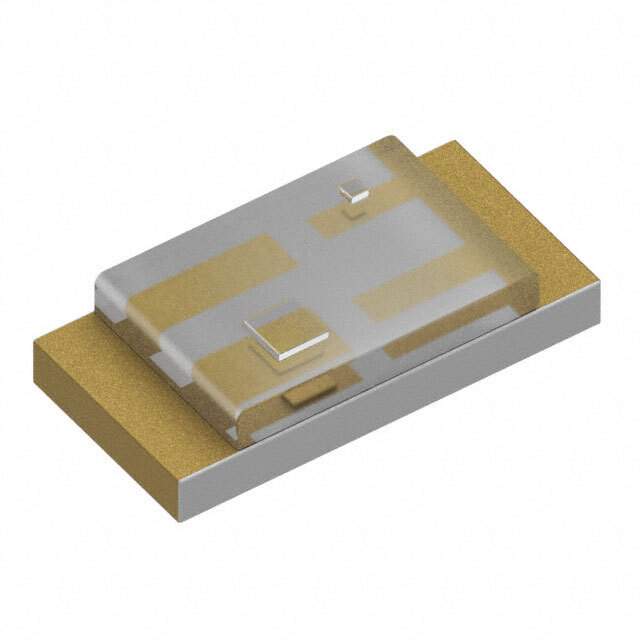

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Optoelectronics>LED Indication - Discrete
Manufacturer Dialight
Packaging Reel - TR
Color White
Configuration Standard
Lens Style Rectangle with Flat Top
Lens Size 1.20mm x 0.80mm
Voltage - Forward (Vf) (Typ) 2.925V
Current - Test 5mA
Viewing Angle 130°
Mounting Surface Mount
Case / Package 0603 (1608 Metric)
Supplier Device Package 0603
Size / Dimension 1.60mm L x 0.80mm W
Height (Max) 0.45mm
Base Product Number 5973905
RoHS Status ROHS3 Compliant
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Other Part Number 350-4395-6,350-4395-1,350-4395-2
Standard Package 5,000
Win Source Part Number 1331728-5973905607F
Ultra Librarian 3D Model Ultra Librarian 5973905607F CAD Model

Description

Dialight's 1331728-5973905607F is an LED indication discrete product that comes in a reel - TR packaging.

  • Color: White
  • Size/Dimension: 1.60mm L x 0.80mm W
  • Standard Package: 5,000
  • Mounting Style: Surface mount
  • Configuration: Standard
  • Viewing Angle: 130°
  • Voltage-Forward (Vf) (Typ): 2.925V
  • Current-Test: 5mA
  • Height: 0.45mm
  • Supplier Device Package: 0603
  • Lens Style: Rectangle with a flat top
  • Lens Size: 1.20mm x 0.80mm
  • MSL Level: 3 (168 Hours)
  • REACH: Unaffected
  • HTSUS: 8541.41.0000
