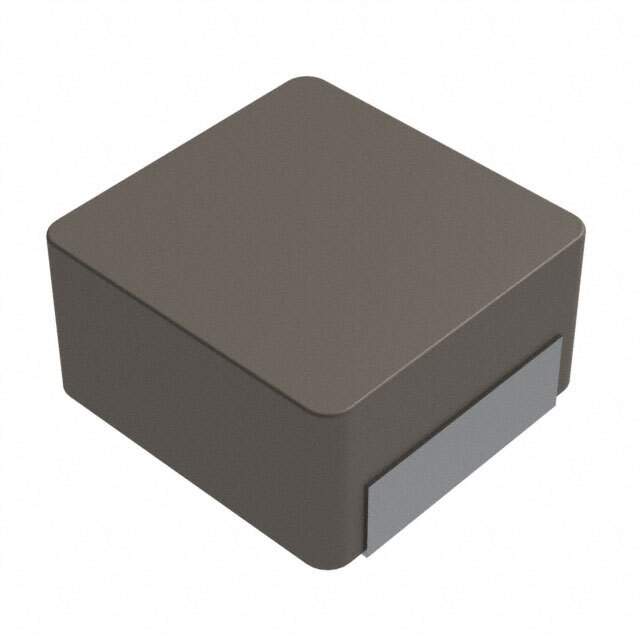

VCHA042A-4R7MS6 Real Image
Same model may have multiple batches, images only for reference.

VCHA042A-4R7MS6

Part No VCHA042A-4R7MS6
Manufacturer Delta Electronics
Catalog Fixed Inductors
Description FIXED IND 4.7UH 4A 53.8MOHM SMD / 4.7 µH Unshielded Inductor 4 A 53.8mOhm Max Nonstandard
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Manufacturer Delta Electronics/Cyntec
Packaging Reel - TR
Material - Core Metal
Inductance 4.7 µH
Tolerance ±20%
Current Rating (Amps) 4 A
Current - Saturation (Isat) 3.2A
Shielding Unshielded
DC Resistance (DCR) 53.8mOhm Max
Ratings AEC-Q200
Temperature Range - Operating -55°C ~ 165°C
Inductance Frequency - Test 100 kHz
Mounting Surface Mount
Case / Package Nonstandard
Size / Dimension 0.165" L x 0.157" W (4.20mm x 4.00mm)
Height - Seated (Max) 0.083" (2.10mm)
Base Product Number VCHA042A
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Other Part Number 2037-VCHA042A-4R7MS6CT,2037-VCHA042A-4R7MS6TR,VCHA042A-4R7MS6-ND,2037-VCHA042A-4R7MS6DKR
Standard Package 2,000
Win Source Part Number 1329252-VCHA042A-4R7MS6
Ultra Librarian 3D Model Ultra Librarian VCHA042A-4R7MS6 CAD Model

Description

The Delta Electronics/Cyntec fixed inductor with Win Source Part Number 1329252-VCHA042A-4R7MS6 is a high-performance component used in various electronic devices.

  • Shielding: Unshielded
  • Size: 0.165" L x 0.157" W (4.20mm x 4.00mm)
  • Inductance: 4.7 µH
  • Tolerance: ±20%
  • DC Resistance (DCR): 53.8mOhm Max
  • Current Rating: 4 A
  • Operating Temperature: -55°C ~ 165°C
  • Case/Package: Non-standard
  • AEC-Q200: Yes
  • Applications: Automotive, telecommunications, and industrial equipment
