Same model may have multiple batches, images only for reference.

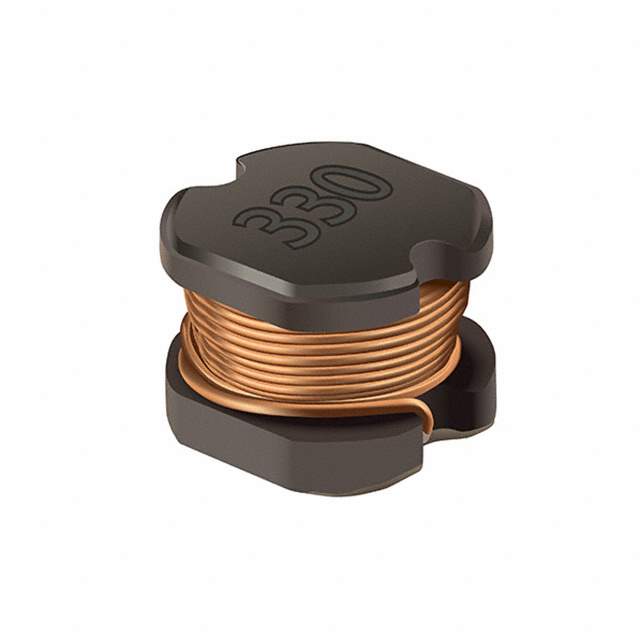

SDE0403A-560K Real Image
Same model may have multiple batches, images only for reference.

SDE0403A-560K

Part No SDE0403A-560K
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
SDE0403A-560K Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SDE0403A
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 56 µH
Tolerance ±10%
Current Rating (Amps) 450 mA
Current - Saturation (Isat) 600mA
Shielding Unshielded
DC Resistance (DCR) 920mOhm Max
Frequency - Self Resonant 15MHz
Ratings AEC-Q200
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 1 MHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.177" L x 0.157" W (4.50mm x 4.00mm)
Height - Seated (Max) 0.138" (3.50mm)
Base Product Number SDE0403A
Other Names SDE0403A-560KDKR,SDE0403A-560KCT,SDE0403A-560KTR
Standard Package 2,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1274929-SDE0403A-560K
Ultra Librarian 3D Model Ultra Librarian SDE0403A-560K CAD Model

Description

The SDE0403A-560K from Bourns Inc. is a drum core, wirewound inductor that comes in a tape and reel package.

  • Shielding: Unshielded
  • Inductance: 56 µH
  • Tolerance: ±10%
  • Core Material: Ferrite
  • Self-Resonant Frequency: 15MHz
  • DC Resistance: 920mOhm Max
  • Current Rating: 450 mA
  • Temperature Range: -40°C to 125°C
  • Package Dimensions: 0.177" L x 0.157" W (4.50mm x 4.00mm)
  • REACH: Unaffected
  • ECCN: EAR99
  • Series: SDE0403A
