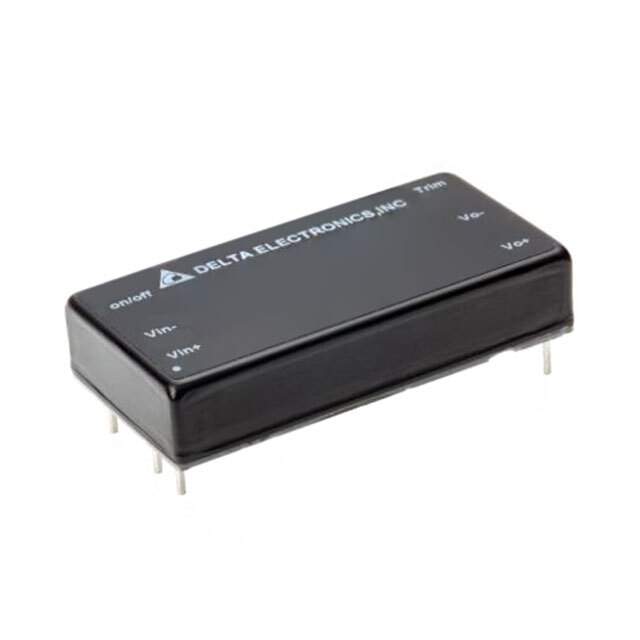

S24SP24003PDFA Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Mfr Delta Electronics
Series S24SP (60W)
Package Tube
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 9V
Voltage - Input (Max) 36V
Voltage - Output 1 24V
Current - Output (Max) 2.5A
Power (Watts) 60 W
Voltage - Isolation 1.5 kV
Applications ITE (Commercial)
Features Remote On/Off, OCP, OTP, OVP, SCP
Temperature Range - Operating -40°C ~ 85°C
Efficiency 93%
Mounting Type Through Hole
Package / Case 6-DIP Module
Dimension 2.00" L x 1.00" W x 0.41" H (50.8mm x 25.4mm x 10.5mm)
Control Features Enable, Active High
Base Product Number S24SP
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Names 941-1761
Standard Package 10
Win Source Part Number 1033288-S24SP24003PDFA
Ultra Librarian 3D Model Ultra Librarian S24SP24003PDFA CAD Model

Description

The Delta Electronics S24SP (60W) 1033288-S24SP24003PDFA is an isolated module type DC DC converter with a remote on/off, OCP, OTP, OVP, and SCP features.

  • Power Output: 60W
  • Efficiency: 93%
  • Standard Package: 10
  • Suitable for: ITE (Commercial) applications
  • MSL Level: 1 (Unlimited)
  • REACH: Unaffected
  • Dimension: 2.00" L x 1.00" W x 0.41" H (50.8mm x 25.4mm x 10.5mm)
