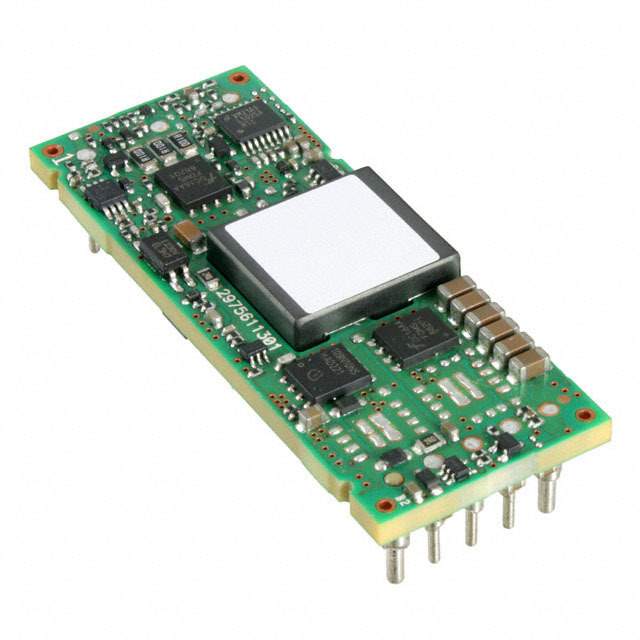

E36SC12009NRFA Real Image
Same model may have multiple batches, images only for reference.

E36SC12009NRFA

Part No E36SC12009NRFA
Manufacturer Delta Electronics
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 12V 108W  /  Isolated Module DC DC Converter 1 Output 12V 9A 18V - 75V Input
Datasheet
E36SC12009NRFA Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Mfr Delta Electronics
Series Delphi E36SC (108W)
Package Tray
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 18V
Voltage - Input (Max) 75V
Voltage - Output 1 12V
Current - Output (Max) 9A
Power (Watts) 108 W
Voltage - Isolation 1.5 kV
Applications ITE (Commercial)
Features Remote On/Off, OCP, OTP, OVP, UVLO
Temperature Range - Operating -40°C ~ 85°C
Efficiency 92%
Mounting Type Through Hole
Package / Case 8-DIP Module, 1/8 Brick
Dimension 2.30" L x 0.90" W x 0.43" H (58.4mm x 22.9mm x 10.9mm)
Control Features Enable, Active Low
Base Product Number E36SC
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Names 941-1571
Standard Package 21
Win Source Part Number 1056646-E36SC12009NRFA
Ultra Librarian 3D Model Ultra Librarian E36SC12009NRFA CAD Model

Description

Delta Electronics’ E36SC12009NRFA is a DC DC converter that is part of the Delphi E36SC (108W) series.

  • Series: Delphi E36SC (108W)
  • Power: 108 W
  • Efficiency: 92%
  • Voltage Isolation: 1.5 kV
  • Number of Outputs: 1
  • Current Output: 9A
  • Voltage Input Range: 18V to 75V
