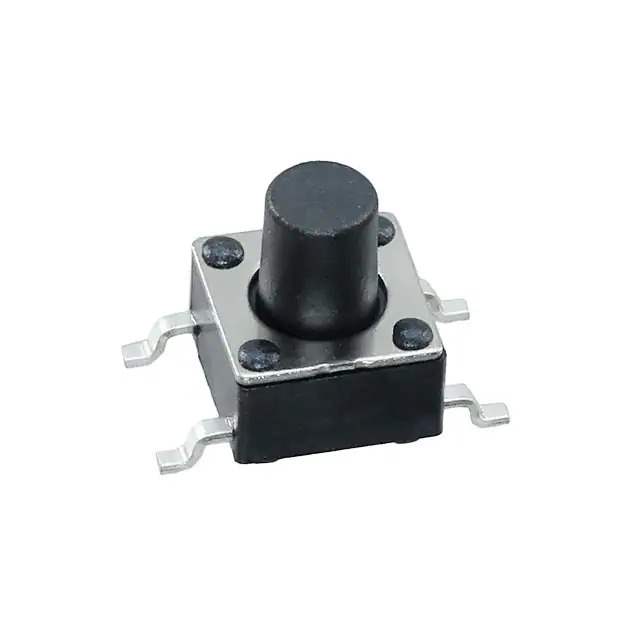

TL3301EF100QG Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Switches - Tactile Switches
Mfr E-Switch
Series TL3301
Package Tape & Reel
Product Status Active
Circuit SPST-NO
Switch Function Off-Mom
Contact Rating @ Voltage 0.05A @ 12VDC
Actuator Type Standard
Mounting Type Surface Mount
Actuator Height off PCB, Vertical 7.30mm
Actuator Orientation Top Actuated
Termination Style Gull Wing
Outline 6.00mm x 6.00mm
Illumination Non-Illuminated
Operating Force 100gf
Temperature Range - Operating -20°C ~ 70°C
Actuator Material Polyamide (PA), Nylon
Switch Travel 0.25mm
Mechanical Life 100,000 Cycles
Base Product Number TL3301
Standard Package 700 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9031
Win Source Part Number 849176-TL3301EF100QG
Ultra Librarian 3D Model Ultra Librarian TL3301EF100QG CAD Model

Description

The TL3301EF100QG series tactile switch is a high-quality component designed for reliable performance in different applications.

  • Termination Style: gull wing
  • Circuit: SPST-NO
  • Switch Function: off-momentary
  • Actuator Type: standard
  • Actuator Travel: 0.25mm
  • Operating Force: 100gf
  • Outline: 6.00mm x 6.00mm
  • Operating Temperature: -20°C to 70°C
  • Mechanical Life: 100,000 cycles
  • Manufacturer: E-Switch
  • Product Status: active
