Same model may have multiple batches, images only for reference.

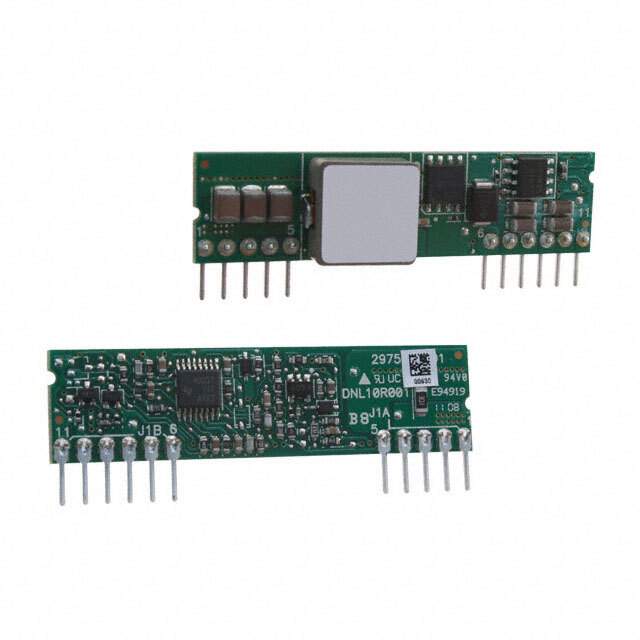

DNM04S0A0R10NFD Real Image
Same model may have multiple batches, images only for reference.

DNM04S0A0R10NFD

Part No DNM04S0A0R10NFD
Manufacturer Delta Electronics
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 0.75-3.3V 33W / Non-Isolated PoL Module DC DC Converter 1 Output 0.75 ~ 3.3V 10A 2.8V - 5.5V Input
Datasheet
DNM04S0A0R10NFD Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Mfr Delta Electronics
Series Delphi DNM
Package Tray
Type Non-Isolated PoL Module
Number of Outputs 1
Voltage - Input (Min) 2.8V
Voltage - Input (Max) 5.5V
Voltage - Output 1 0.75 ~ 3.3V
Current - Output (Max) 10A
Power (Watts) 33 W
Applications ITE (Commercial)
Temperature Range - Operating -40°C ~ 125°C
Efficiency 96%
Mounting Type Through Hole
Package / Case 11-SIP Module
Dimension 2.00" L x 0.33" W x 0.53" H (50.8mm x 8.5mm x 13.4mm)
Base Product Number DNM04S0
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Names 941-1015
Standard Package 24
Win Source Part Number 1001702-DNM04S0A0R10NFD
Ultra Librarian 3D Model Ultra Librarian DNM04S0A0R10NFD CAD Model

Description

The Delphi DNM non-isolated PoL module is a power supply board mount DC-DC converter that is ideal for ITE (Commercial) applications.

  • Voltage Input Range: 2.8V to 5.5V
  • Output Voltage Range: 0.75V to 3.3V
  • Power Output: 33W
  • Maximum Output Current: 10A
  • Efficiency: 96%
  • Mounting: Through hole
  • Package: 11-SIP module package
  • Temperature Range: -40°C to 125°C
  • Dimensions: 2.00" L x 0.33" W x 0.53" H (50.8mm x 8.5mm x 13.4mm)
  • Manufacturer: Delta Electronics
  • Standard Package: 24
