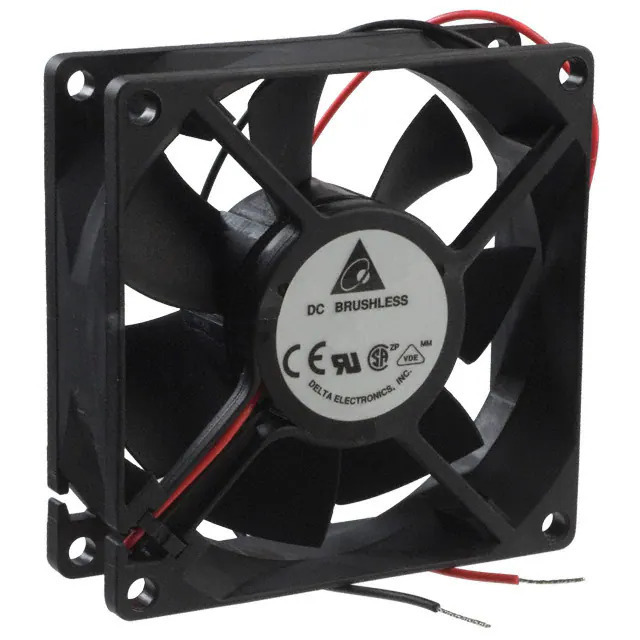

AFB0812SH Delta Electronics
Same model may have multiple batches, images only for reference.

AFB0812SH

Part No AFB0812SH
Manufacturer Delta Electronics
Catalog Fans, Thermal Management
Description FAN AXIAL 80X25.4MM 12VDC WIRE
Datasheet
AFB0812SH Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Fans, Thermal Management - Fans - DC Brushless Fans (BLDC)
Mfr Delta Electronics
Series AFB
Package Bulk
Product Status Active
Voltage - Rated 12VDC
Size / Dimension Square - 80mm L x 80mm H
Width 25.40mm
Air Flow 46.6 CFM (1.30m³/min)
Static Pressure 0.267 in H2O (66.5 Pa)
Bearing Type Ball
Fan Type Tubeaxial
Features Locked Rotor Protection
Noise 40.0dB(A)
Power (Watts) 4.08 W
RPM 4000 RPM
Termination 2 Wire Leads
Ingress Protection -
Temperature Range - Operating 14 ~ 158°F (-10 ~ 70°C)
Approval Agency CE, CSA, UL, VDE
Weight 0.176 lb (80.00 g)
Current Rating (Amps) 0.340A
Voltage Range 7 ~ 13VDC
Material - Frame Plastic
Material - Blade Plastic
Lifetime @ Temp. 70000 Hrs @ 40°C
Base Product Number AFB0812
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8414.59.6590
Win Source Part Number 1368417-AFB0812SH
Ultra Librarian 3D Model Ultra Librarian AFB0812SH CAD Model

Description

The AFB0812SH is a DC brushless fan from Delta Electronics.

  • Series: AFB
  • Voltage Rating: 12VDC
  • Protection: Locked Rotor Protection
  • Current Rating: 0.340A
  • Power Consumption: 4.08W
  • Size: 80mm x 80mm
  • Noise Level: 40.0dB(A)
  • Speed: 4000 RPM
  • Air Flow Rate: 46.6 CFM
  • Approvals: CE, CSA, UL, and VDE
