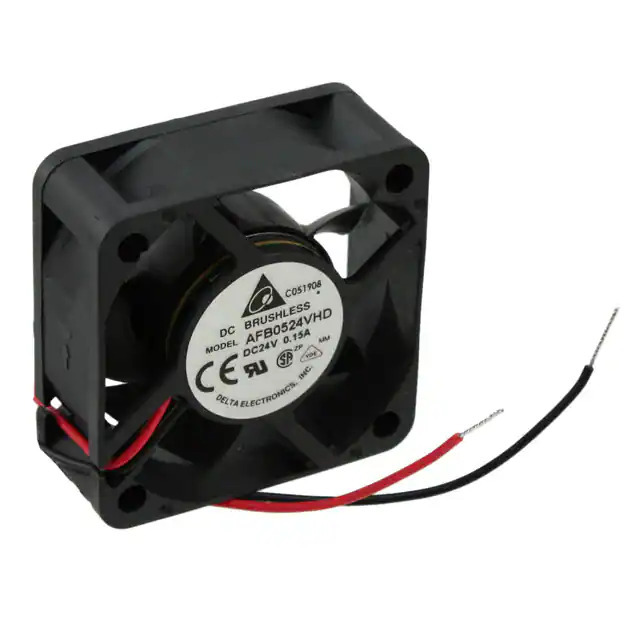

AFB0524VHD Delta Electronics
Same model may have multiple batches, images only for reference.

AFB0524VHD

Part No AFB0524VHD
Manufacturer Delta Electronics
Catalog Fans, Thermal Management
Description FAN AXIAL 50X20MM 24VDC WIRE
Datasheet
AFB0524VHD Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Fans, Thermal Management - Fans - DC Brushless Fans (BLDC)
Mfr Delta Electronics
Series AFB
Package Bulk
Product Status Active
Voltage - Rated 24VDC
Size / Dimension Square - 50mm L x 50mm H
Width 20.00mm
Air Flow 20.3 CFM (0.568m³/min)
Static Pressure 0.303 in H2O (75.5 Pa)
Bearing Type Ball
Fan Type Tubeaxial
Features Locked Rotor Protection
Noise 40.5dB(A)
Power (Watts) 2.4 W
RPM 7000 RPM
Termination 2 Wire Leads
Ingress Protection -
Temperature Range - Operating 14 ~ 158°F (-10 ~ 70°C)
Approval Agency CE, CSA, UL, VDE
Weight 0.085 lb (38.56 g)
Current Rating (Amps) 0.100A
Voltage Range 14 ~ 27.6VDC
Material - Frame Plastic
Material - Blade Plastic
Lifetime @ Temp. 70000 Hrs @ 40°C
Base Product Number AFB0524
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8414.59.6590
Win Source Part Number 1368426-AFB0524VHD
Ultra Librarian 3D Model Ultra Librarian AFB0524VHD CAD Model

Description

The AFB0524VHD is a DC brushless fan from Delta Electronics.

  • Series: AFB
  • Voltage Rating: 24VDC
  • Current Rating: 0.100A
  • Power Consumption: 2.4W
  • Protection: Locked Rotor Protection
  • Size: 50mm x 50mm
  • Bearing Type: Ball Bearing
  • Speed: 7000 RPM
  • Air Flow: 20.3 CFM
  • Approvals: CE, CSA, UL, and VDE
  • Noise Level: 40.5dB(A)
  • Lifetime: 70000 hours @ 40°C
