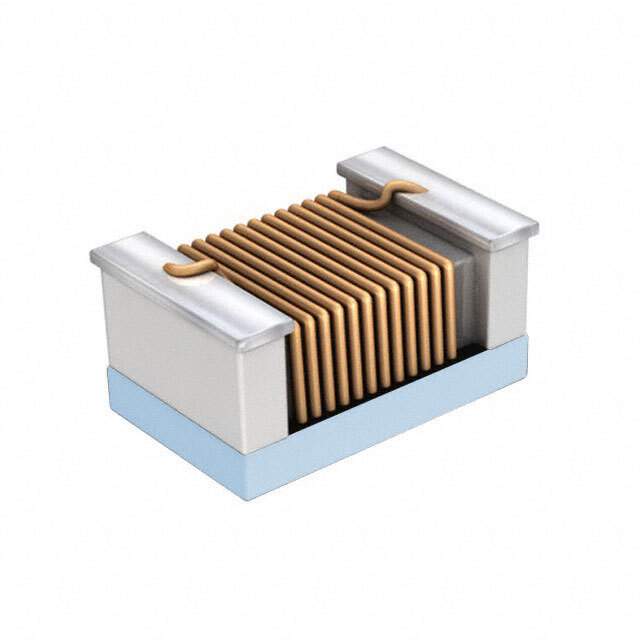

0402HS-2N2EJTS Real Image1 0402HS-2N2EJTS Real Image2
Same model may have multiple batches, images only for reference.
0402HS-2N2EJTS Real Image1 0402HS-2N2EJTS Real Image2
0402HS-2N2EJTS Real Image1 0402HS-2N2EJTS Real Image2
Same model may have multiple batches, images only for reference.

0402HS-2N2EJTS

Part No 0402HS-2N2EJTS
Manufacturer Delta Electronics
Catalog Fixed Inductors
Description FIXED IND 2.2NH 960MA 70MOHM SMD / 2.2 nH Unshielded Drum Core, Wirewound Inductor 960 mA 70mOhm 0402 (1005 Metric)
Datasheet
0402HS-2N2EJTS Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Delta Electronics
Series 0402HS
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Ceramic
Inductance 2.2 nH
Tolerance ±5%
Current Rating (Amps) 960 mA
Current - Saturation (Isat) -
Shielding Unshielded
DC Resistance (DCR) 70mOhm
Q @ Freq 19 @ 250MHz
Frequency - Self Resonant 10.8GHz
Ratings -
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 250 MHz
Features -
Mounting Type Surface Mount
Package / Case 0402 (1005 Metric)
Supplier Device Package 0402
Size / Dimension 0.050" L x 0.030" W (1.27mm x 0.76mm)
Height - Seated (Max) 0.024" (0.60mm)
Base Product Number 0402HS
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Standard Package 4,000 pcs
Win Source Part Number 1380368-0402HS-2N2EJTS
Ultra Librarian 3D Model Ultra Librarian 0402HS-2N2EJTS CAD Model

Description

The 0402HS-2N2EJTS is a drum core, wirewound inductor that belongs to the 0402HS series.

  • Series: 0402HS
  • Core Type: Drum Core, Wirewound
  • Mounting Type: Surface Mount
  • Package: Tape & Reel
  • Size: 0.050" L x 0.030" W (1.27mm x 0.76mm)
  • Height: 0.024" (0.60mm) seated
  • Inductance: 2.2 nH
  • Tolerance: ±5%
  • DC Resistance (DCR): 70mOhm
  • Current Rating: 960 mA
  • Operating Temperature: -40°C to 125°C
  • Core Material: Ceramic
  • Q Value: 19 @ 250MHz
  • Self-Resonant Frequency: 10.8GHz
  • Manufacturer: Delta Electronics
