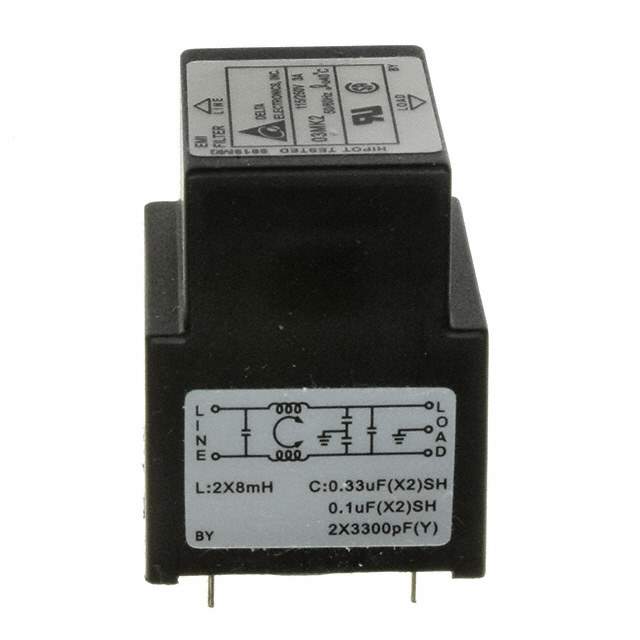

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Filters - Power Line Filter Modules
Mfr Delta Electronics
Series MK
Package Box
Filter Type Single Phase
Configuration Single Stage
Voltage - Rated AC 115V, 250V
Current 3 A
Frequency - Operating 50/60Hz
Applications General Purpose
Approval Agency CSA, UR, VDE
Temperature Range - Operating -25°C ~ 85°C
Mounting Type Through Hole
Termination Style PC Pins
Inductance 8mH
Standard Package 252
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 1348967-03MK2
Ultra Librarian 3D Model Ultra Librarian 03MK2 CAD Model

Description

The Delta Electronics Power Line Filter Module is a single-stage filter type designed for general purpose applications.

  • Filter Type: Single-Stage
  • Application: General Purpose
  • Inductance: 8mH
  • Current: Up to 3A
  • Voltage Rating: 115V and 250V AC
  • Frequency: 50/60Hz
  • Mounting: Through Hole
  • Operating Temperature: -25°C to 85°C
  • MSL Level: 1
  • REACH: Unaffected
  • Approvals: CSA, UR, and VDE
