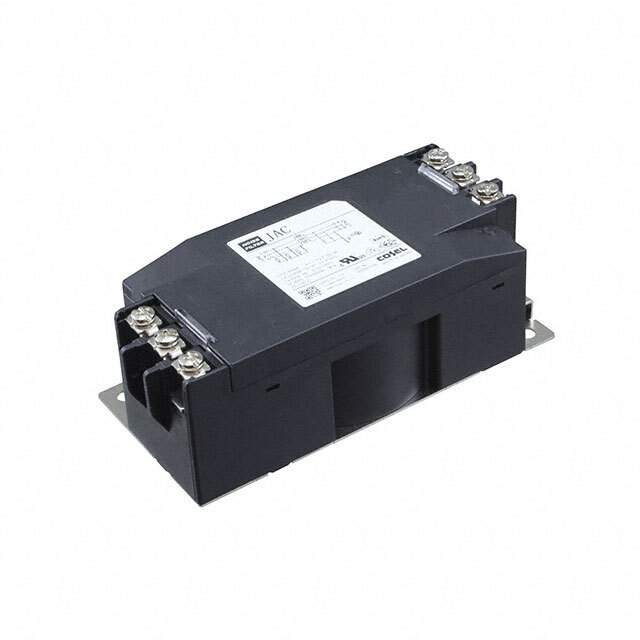

JAC-20-103 Real Image
Same model may have multiple batches, images only for reference.

JAC-20-103

Part No JAC-20-103
Manufacturer Cosel USA, Inc.
Catalog Power Line Filter Modules
Description LINE FILTER 500VAC 20A CHASSIS  /  Three Phase (Wye) EMC/EMI Line Filter 20 A 500VAC 50/60Hz Two Stage Terminal Block
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Power Line Filter Modules
Mfr Cosel USA, Inc.
Series JAC
Package Box
Filter Type Three Phase (Wye)
Configuration Two Stage
Voltage - Rated AC 500V
Current 20 A
Frequency - Operating 50/60Hz
Applications General Purpose
Approval Agency cURus, VDE
Temperature Range - Operating -40°C ~ 85°C
Mounting Type Chassis Mount
Termination Style Terminal Block
Base Product Number JAC-20
MSL Level Not Applicable
ECCN EAR99
HTSUS 8548.00.0000
Other Names 1776-3026,JAC-20-103-ND
Standard Package 1
Win Source Part Number 1149737-JAC-20-103
Ultra Librarian 3D Model Ultra Librarian JAC-20-103 CAD Model

Description

The Cosel USA JAC-20-103 two-stage power line filter module is designed for general-purpose use and features a three-phase (Wye) filter type.

  • Filter Type: Three-Phase (Wye)
  • Current Rating: 20 A
  • Voltage Rating: 500V AC
  • Package Type: Box
  • Mounting Type: Chassis Mount
  • Operating Temperature: -40°C to 85°C
  • ECCN: EAR99
  • Approvals: cURus and VDE
