Same model may have multiple batches, images only for reference.

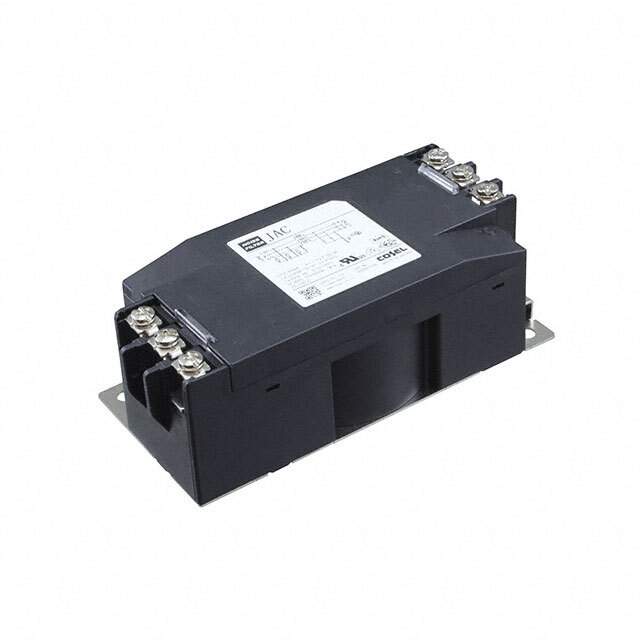

JAC-20-103-D Real Image
Same model may have multiple batches, images only for reference.

JAC-20-103-D

Part No JAC-20-103-D
Manufacturer Cosel USA, Inc.
Catalog Power Line Filter Modules
Description LINE FILTER 500VAC 20A DIN RAIL  /  Three Phase (Wye) EMC/EMI Line Filter 20 A 500VAC 50/60Hz Two Stage Terminal Block
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Power Line Filter Modules
Mfr Cosel USA, Inc.
Series JAC
Package Box
Filter Type Three Phase (Wye)
Configuration Two Stage
Voltage - Rated AC 500V
Current 20 A
Frequency - Operating 50/60Hz
Applications General Purpose
Approval Agency cURus, VDE
Temperature Range - Operating -40°C ~ 85°C
Mounting Type DIN Rail
Termination Style Terminal Block
Base Product Number JAC-20
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8548.00.0000
Standard Package 1
Win Source Part Number 984229-JAC-20-103-D
Ultra Librarian 3D Model Ultra Librarian JAC-20-103-D CAD Model

Description

The JAC-20-103-D is a three-phase (Wye) power line filter module designed for general-purpose applications.

  • Configuration: two-stage
  • Current Rating: 20 A
  • Rated AC Voltage: 500V
  • Mounting: DIN rail
  • Temperature Range: -40°C to 85°C
  • Termination Style: terminal block
  • Package: box
  • Approvals: cURus and VDE
