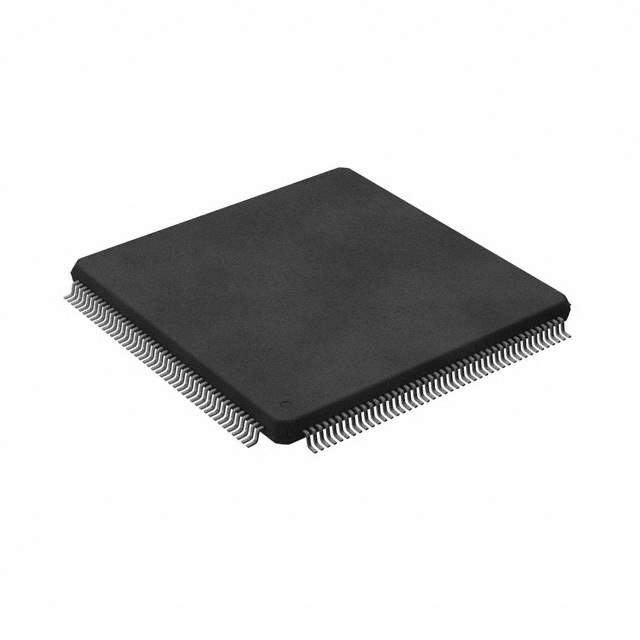

S6E2DH5J0AGV20000 Real Image
Same model may have multiple batches, images only for reference.

S6E2DH5J0AGV20000

Part No S6E2DH5J0AGV20000
Manufacturer Cypress Semiconductor Corp
Catalog Embedded - Microcontrollers
Description IC MCU 32BIT 384KB FLASH 176LQFP
Datasheet
S6E2DH5J0AGV20000 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Features ARM® Cortex®-M4F series Microcontroller IC 32-Bit 160MHz 384KB (384K x 8) FLASH 176-LQFP (24x24)
Manufacturer Cypress Semiconductor Corp
Series FM4 S6E2DH
Package Tray
Part Status Obsolete
Core Processor ARM® Cortex®-M4F
Core Size 32-Bit
Speed 160MHz
Connectivity CANbus, CSIO, EBI/EMI, I²C, LINbus, SD, SPI, UART/USART, USB
Peripherals DMA, I2S, LVD, POR, PWM, WDT
Number of I/O 154
Program Memory Size 384KB (384K x 8)
Program Memory Type FLASH
Supply Voltage 2.7V ~ 3.6V
Data Converters A/D 24x12b
Oscillator Type Internal
Operating Temperature Range -40°C ~ 125°C (TA)
Mounting Surface Mount
Package 176-LQFP
Case / Package 176-LQFP (24x24)
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN OBSOLETE
Quantity per package 40
Popularity High
Supply and Demand Status Balance
Win Source Part Number 893119-S6E2DH5J0AGV20000
Ultra Librarian 3D Model Ultra Librarian S6E2DH5J0AGV20000 CAD Model

Description

The Cypress Semiconductor Corp S6E2DH5J0AGV20000 is an obsolete ARM Cortex-M4F series microcontroller IC with a 32-bit core processor.

  • Manufacturer: Cypress Semiconductor Corp
  • Series: ARM Cortex-M4F
  • Status: Obsolete
  • Core Processor: 32-bit
  • Program Memory Size: 384KB (384K x 8) FLASH
  • Speed: 160MHz
  • I/Os: 154
  • Package: 176-LQFP (24x24)
  • Voltage Supply: 2.7V to 3.6V
  • Operating Temperature: -40°C to 125°C (TA)
  • ECCN: OBSOLETE
  • REACH: Unaffected
  • Quantity per Package: 40 (estimated)
  • MSL Level: 3 (168 hours)
