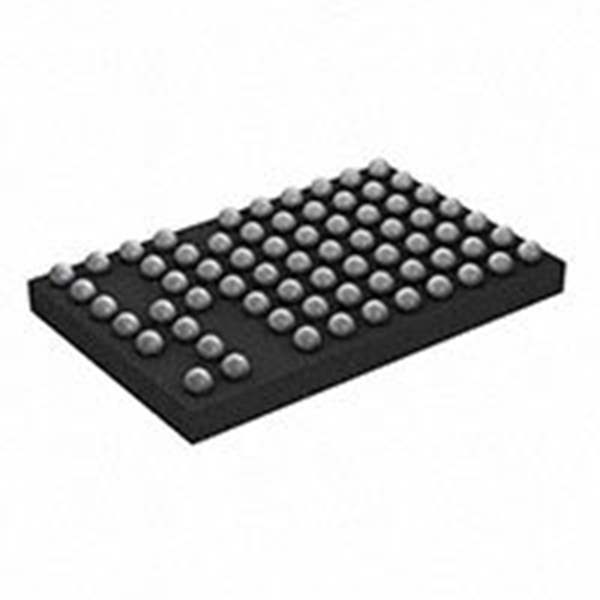

CYW43362KUBGT Cypress Semiconductor Corp
Same model may have multiple batches, images only for reference.

CYW43362KUBGT

Part No CYW43362KUBGT
Manufacturer Cypress Semiconductor Corp
Catalog RF Receivers
Description IC RF TXRX+MCU WIFI 69UFBGA / IC RF TxRx + MCU WiFi 802.11b/g/n 2.4GHz 69-UFBGA, WLBGA
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF/IF and RFID>RF Transceiver ICs
Mfr Cypress Semiconductor Corp
Package Tape & Reel
Type TxRx + MCU
RF Family/Standard WiFi
Protocol 802.11b/g/n
Modulation 16QAM, 64QAM, BPSK, CCK, DSSS, QPSK, OFDM
Frequency 2.4GHz
Data Rate (Max) 72Mbps
Power - Output 18.5dBm
Sensitivity -97dBm
Memory Size 448kB ROM, 240kB RAM
Serial Interfaces JTAG, SPI, UART
GPIO 5
Voltage - Supply 1.2V ~ 3.3V
Current - Receiving 52mA ~ 59mA
Current - Transmitting 260mA ~ 320mA
Temperature Range - Operating -30°C ~ 85°C
Mounting SMD (SMT)
Package / Case 69-UFBGA, WLBGA
Supplier Device Package 69-WLBGA (4.52x2.92)
Base Product Number CYW43362
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN 5A992C
HTSUS 8542.39.0001
Other Names BCM43362KUBGT-ND,BCM43362KUBGT,CYW43362KUBGT-ND,428-CYW43362KUBGTTR,CYW43362KUBGTINACTIVE,428-CYW43362KUBGTCT,428-CYW43362KUBGTDKR
Standard Package 5,000
Win Source Part Number 1121107-CYW43362KUBGT
Ultra Librarian 3D Model Ultra Librarian CYW43362KUBGT CAD Model

Description

The CYW43362KUBGT is a high-performance, ultra-low power, single-stream 802.11n device that provides a complete wireless connectivity solution for embedded systems.

  • Supports: Wi-Fi Direct®, Wi-Fi Protected Setup™ (WPS), and WPA2™/WPA™ security protocols
  • Data Rate: Up to 72 Mbps
  • Range: Up to 400 meters
  • Package: 69-UFBGA, WLBGA
  • Manufacturer: Cypress Semiconductor Corp.
