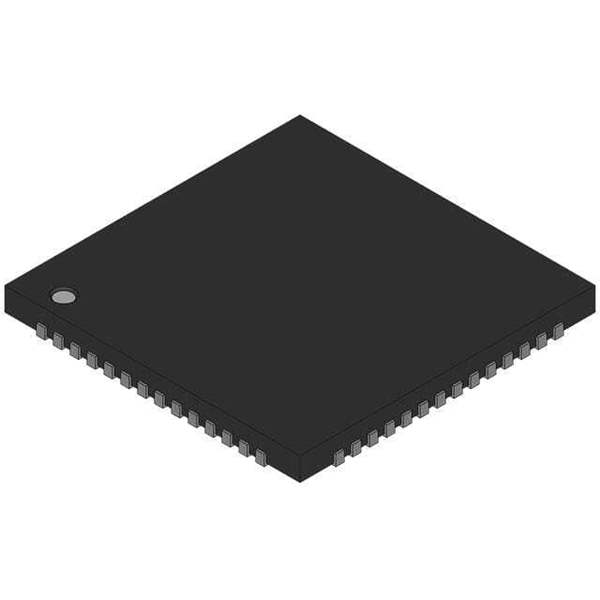

Same model may have multiple batches, images only for reference.
CY8CTMA120-56LFXA
Same model may have multiple batches, images only for reference.

CY8CTMA120-56LFXA

Part No CY8CTMA120-56LFXA
Manufacturer Cypress Semiconductor Corp
Catalog Embedded - Microcontrollers - Application Specific
Description MULTIFUNCTION PERIPHERAL, CMOS
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Embedded - Application Specific Microcontrollers
Mfr Cypress Semiconductor Corp
Series TrueTouch™
Package Bulk
Product Status Active
Programmable Not Verified
Applications Touchscreen Controller
Core Processor M8C
Program Memory Type FLASH (16kB)
Controller Series CY8CT
RAM Size 1K x 8
Interface I2C, SPI, UART/USART, USB
Voltage - Supply 3V ~ 5.25V
Temperature Range - Operating -40°C ~ 125°C (TA)
Mounting Type Surface Mount
Package / Case 56-VFQFN Exposed Pad
Supplier Device Package 56-QFN (8x8)
Standard Package 40 pcs
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN 3A991A3
HTSUS 8542.31.0001
Win Source Part Number 916571-CY8CTMA120-56LFXA
Ultra Librarian 3D Model Ultra Librarian CY8CTMA120-56LFXA CAD Model

Description

The CY8CTMA120-56LFXA is an integrated circuit from Cypress Semiconductor Corp. It is a TrueTouch™ touchscreen controller designed for various applications.

  • Series: TrueTouch™
  • Core Processor: M8C
  • Program Memory Type: FLASH
  • Program Memory Size: 16kB
  • RAM Size: 1K x 8
  • Interfaces: I2C, SPI, UART/USART, USB
  • Voltage Supply Range: 3V to 5.25V
  • Mounting Type: Surface Mount
  • Package: 56-VFQFN Exposed Pad
  • Operating Temperature: -40°C to 125°C
  • Product Status: Active
