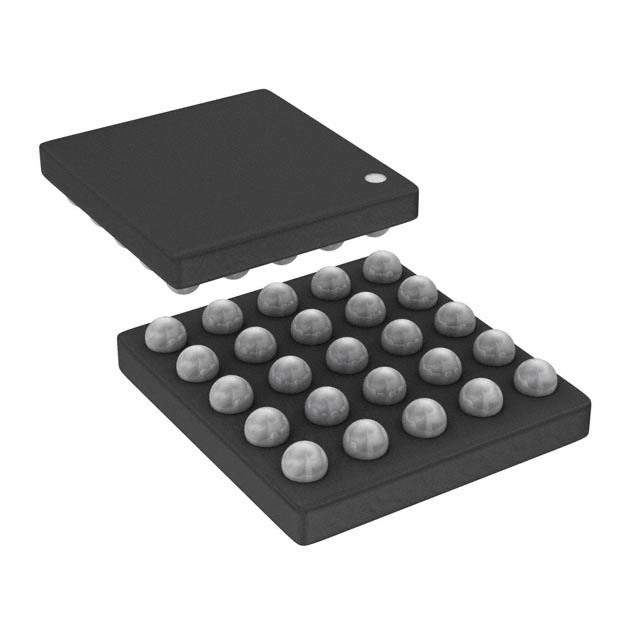

CY8C4024FNI-S402T Real Image
Same model may have multiple batches, images only for reference.

CY8C4024FNI-S402T

Part No CY8C4024FNI-S402T
Manufacturer Cypress Semiconductor Corp
Catalog Embedded - Microcontrollers
Description IC MCU 32BIT 16KB FLASH 25WLCSP / ARM® Cortex®-M0+ series Microcontroller IC 32-Bit Single-Core 24MHz 16KB (16K x 8) FLASH 25-WLCSP (2.02x1.93)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs)>Embedded - Microcontrollers
Mfr Cypress Semiconductor Corp
Series PSOC® 4 CY8C4000S
Package Tape & Reel (TR)
Core Processor ARM® Cortex®-M0+
Core Size 32-Bit Single-Core
Speed 24MHz
Connectivity I2C, IrDA, LINbus, Microwire, SmartCard, SPI, SSP, UART/USART
Peripherals Brown-out Detect/Reset, CapSense, LCD, LVD, POR, PWM, WDT
Number of I/O 21
Program Memory Size 16KB (16K x 8)
Program Memory Type FLASH
RAM Size 2K x 8
Supply Voltage - Operating 1.71V ~ 5.5V
Data Converters A/D 1x10b
Oscillator Type Internal
Temperature Range - Operating -40°C ~ 85°C (TA)
Mounting SMD (SMT)
Package / Case 25-XFBGA, WLCSP
Supplier Device Package 25-WLCSP (2.02x1.93)
Base Product Number CY8C4024
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN 3A991A2
HTSUS 8542.31.0001
Other Names 2015-CY8C4024FNI-S402TTR,2015-CY8C4024FNI-S402TDKR,2015-CY8C4024FNI-S402TCT,2156-CY8C4024FNI-S402T,CYPCYPCY8C4024FNI-S402T
Standard Package 2,000
Win Source Part Number 1054409-CY8C4024FNI-S402T
Ultra Librarian 3D Model Ultra Librarian CY8C4024FNI-S402T CAD Model

Description

The CY8C4024FNI-S402T is an Integrated Circuit (IC) from the PSOC® 4 CY8C4000S series manufactured by Cypress Semiconductor Corp.

  • Microcontroller: 32-bit single-core microcontroller
  • Core Processor: ARM® Cortex®-M0+
  • Operating Speed: 24MHz
  • Package: 25-XFBGA, WLCSP
  • Supplier Device Package: 25-WLCSP (2.02x1.93)
  • Operating Temperature Range: -40°C ~ 85°C (TA)
  • Supply Voltage Range: 1.71V ~ 5.5V
  • I/O: 21
  • Program Memory Size: 16KB (16K x 8)
  • RAM Size: 2K x 8
  • Data Converters: A/D 1x10b
  • Connectivity: I2C, IrDA, LINbus, Microwire, SmartCard, SPI, SSP, and UART/USART
  • Peripherals: brown-out detect/reset, CapSense, LCD, LVD, POR, PWM, and WDT
  • Application: embedded microcontroller applications.
