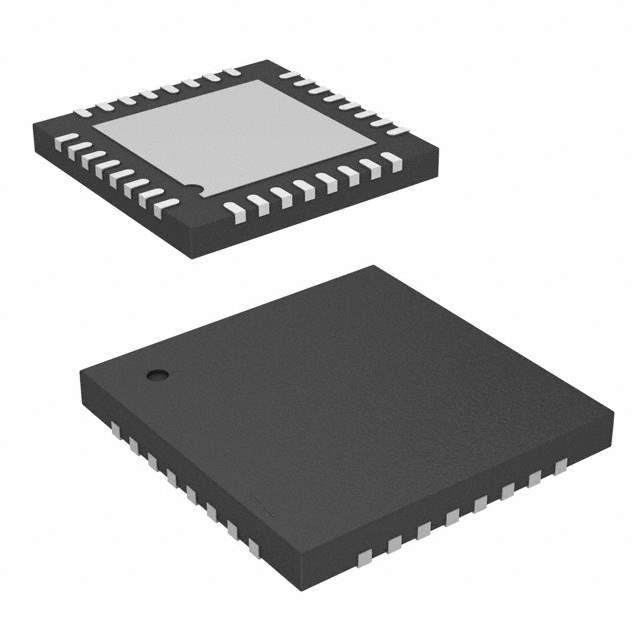

CY8C20436-24LQXI Real Image
Same model may have multiple batches, images only for reference.

CY8C20436-24LQXI

Part No CY8C20436-24LQXI
Manufacturer Cypress Semiconductor Corp
Catalog Embedded - Microcontrollers - Application Specific
Description CapSense Applications
Datasheet
CY8C20436-24LQXI Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Manufacturer Cypress Semiconductor Corp
Series CapSense Controllers
Packaging Tray
Part Status Obsolete(EOL)
Applications Capacitive Sensing
Core Processor M8C
Program Memory Type FLASH (8 kB)
Controller Series CY8C20xx6
RAM Size 1K x 8
Interface I2C, SPI
Number of I/O 28
Operating Supply Voltage 1.71 V ~ 5.5 V
Operating Temperature Range -40°C ~ 85°C
Mounting SMD
Package 32-UFQFN Exposed Pad
Manufacturer Package 32-QFN (5x5)
Win Source Part Number 1165774-CY8C20436-24LQXI
Manufacturer Homepage www.cypress.com
Popularity Medium
Supply and Demand Status Limited
Family Name CY8C20436
Introduction Date March 15, 2003
Estimated EOL Date Obsolete
Ultra Librarian 3D Model Ultra Librarian CY8C20436-24LQXI CAD Model

Description

The Cypress Semiconductor Corp CY8C20436-24LQXI is a CapSense Controller that operates at a temperature range of -40°C to 85°C.

  • Core Processor: M8C core processor
  • Package: 32-UFQFN exposed pad package
  • Supply Voltage: 1.71V to 5.5V
  • Interface: I2C and SPI interface
  • Program Memory Type: FLASH (8kB)
  • RAM Size: 1K x 8
  • Status: Obsolete
  • Supply and Demand Status: Limited
