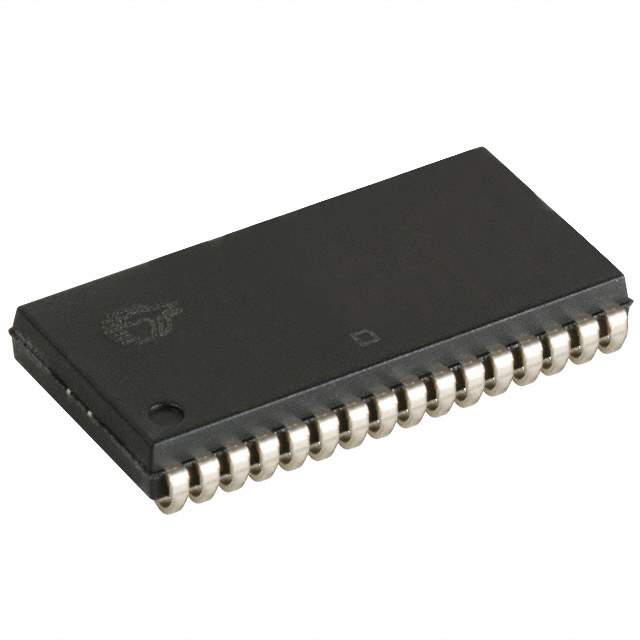

CY7C1009B-15VXC Real Image
Same model may have multiple batches, images only for reference.

CY7C1009B-15VXC

Part No CY7C1009B-15VXC
Manufacturer Cypress Semiconductor Corp
Catalog RAM
Description 128K x 8 Static RAM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Manufacturer Cypress Semiconductor Corp
Packaging Tube
Part Status Obsolete(EOL)
Memory Type Volatile
Memory Format SRAM
Technology SRAM - Asynchronous
Memory Size 1Mb (128K x 8)
Write Cycle Time - Word, Page 15ns
Access Time 15ns
Memory Interface Parallel
Operating Supply Voltage 4.5 V ~ 5.5 V
Operating Temperature Range 0°C ~ 70°C (TA)
Mounting SMD
Package 32-BSOJ (0.300", 7.62mm Width)
Manufacturer Package 32-SOJ
Win Source Part Number 1164681-CY7C1009B-15VXC
Manufacturer Homepage www.cypress.com
Popularity Medium
Supply and Demand Status Limited
Family Name CY7C1009B
Introduction Date September 10, 1999
ECCN 3A991.b.2.b
Halogen Free Compliant
Estimated EOL Date Obsolete
Ultra Librarian 3D Model Ultra Librarian CY7C1009B-15VXC CAD Model

Description

The CY7C1009B-15VXC is an asynchronous SRAM from Cypress Semiconductor Corp.

  • Memory Size: 1Mb (128K x 8)
  • Access Time: 15ns
  • Package: 32-BSOJ (0.300", 7.62mm Width)
  • Voltage Supply: 4.5V to 5.5V
  • Supply and Demand Status: Limited
  • Market Popularity: Medium
  • RoHS Compliance: RoHS Compliant
  • Halogen-Free: Halogen-Free
