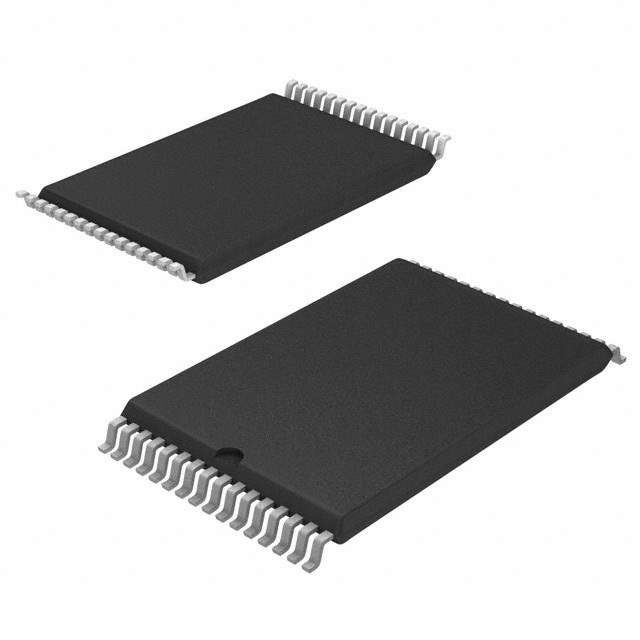

CY62138FV30LL-45ZAXIT Real Image
Same model may have multiple batches, images only for reference.

CY62138FV30LL-45ZAXIT

Part No CY62138FV30LL-45ZAXIT
Manufacturer Cypress Semiconductor Corp
Catalog RAM
Description CY62138FV30 Series 2 Mb (256 K x 8) 2.2 - 3.6 V 45 ns Static RAM - STSOP-32
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Access Time 45 ns
Address Bus Width 18 b
Mounting SMD (SMT)
Case / Package TFSOP
Density 2 Mb
Interface Parallel
Lead Free Yes
Maximum Operating Temperature 85 °C
Max Supply Voltage 3.6 V
Memory Size 256 kB
Memory Type RAM, SDR, SRAM - Asynchronous
Min Operating Temperature -40 °C
Min Supply Voltage 2.2 V
Mount Surface Mount
Nominal Supply Current 18 mA
Number of Pins 32
Number of Ports 1
Number of Words 256000
Operating Supply Voltage 3 V
Radiation Hardening No
RoHS Compliant
Sync/Async Asynchronous
Word Size 8 b
Win Source Part Number 967185-CY62138FV30LL-45ZAXIT
Categories RAM
Manufacturer Cypress Semiconductor Corp
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian CY62138FV30LL-45ZAXIT CAD Model

Description

The Cypress Semiconductor Corp CY62138FV30LL-45ZAXIT is a RAM memory type electronic component manufactured by Cypress Semiconductor Corp.

  • Product Name: CY62138FV30LL-45ZAXIT
  • Manufacturer: Cypress Semiconductor Corp
  • Win Source Part Number: 967185-CY62138FV30LL-45ZAXIT
  • Category: RAM
  • Memory Size: 256 kB
  • Density: 2 Mb
  • Memory Interface: Parallel
  • Access Time: 45 ns
  • Memory Type: Asynchronous
  • Word Size: 8 b
  • Number of Words: 256000
  • Mounting Feature: Surface Mount
  • Case/Package: TFSOP
  • Minimum Operating Temperature: -40°C
  • Maximum Operating Temperature: 85°C
