Same model may have multiple batches, images only for reference.

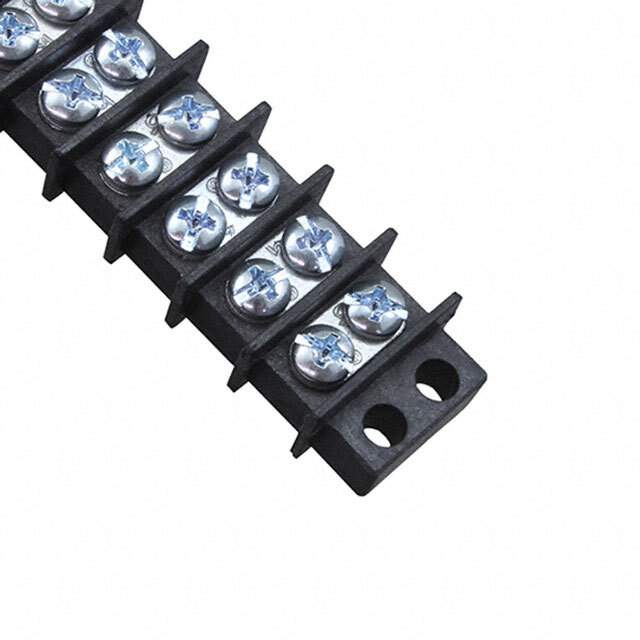

1511 Real Image
Same model may have multiple batches, images only for reference.

1511

Part No 1511
Manufacturer Curtis Industries
Catalog Terminal Blocks
Description CONN BARRIER STRP 11CIRC 0.375"
Datasheet
1511 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Terminal Blocks - Barrier Blocks
Mfr Curtis Industries
Series 1500
Package Bulk
Product Status Active
Terminal Block Type Barrier Block
Number of Circuits 11
Number of Wire Entries 22
Pitch 0.375" (9.53mm)
Number of Rows 2
Current Rating (Amps) 20A
Wire Gauge 10-22 AWG
Top Termination Screws
Bottom Termination Closed
Barrier Type 2 Wall (Dual)
Features Flange
Terminal Screw Material Steel
Mounting Type Chassis, Panel
Temperature Range - Operating 110°C
Material - Insulation Polyphenylene Oxide (PPO)
Material Flammability Rating UL94 V-0
Standard Package 25 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.90.4000
Win Source Part Number 854022-1511
Ultra Librarian 3D Model Ultra Librarian 1511 CAD Model

Description

The Curtis Industries 1500 Barrier Block Terminal Block is a reliable and durable connector for electrical applications.

  • Pitch: 0.375" (9.53mm)
  • Number of Circuits: 11
  • Number of Wire Entries: 22
  • Insulation Material: Polyphenylene Oxide (PPO)
  • Flammability Rating: UL94 V-0
  • Temperature Range: 110°C
  • Mounting: Chassis and Panel
  • Top Termination: Screws
  • Barrier Block Type: 2 Wall (Dual)
  • Current Rating: 20A
  • Standard Package Quantity: 25 pcs
