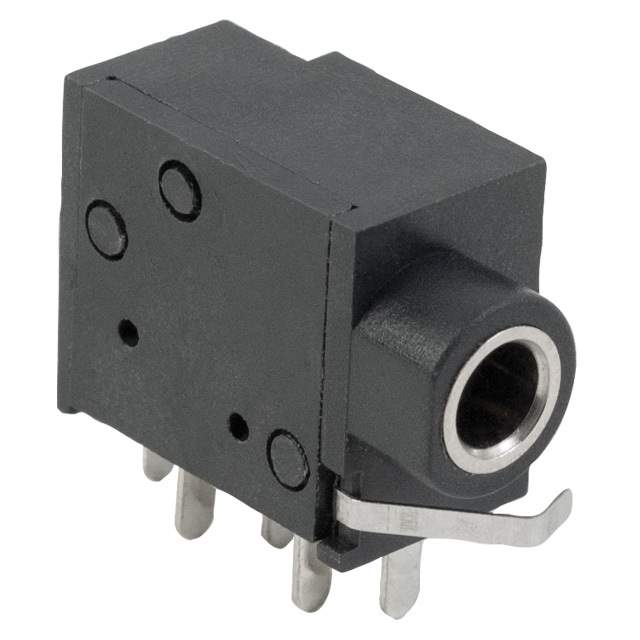

SJ-3598 Real Image
Same model may have multiple batches, images only for reference.

SJ-3598

Part No SJ-3598
Manufacturer CUI Inc.
Catalog Barrel - Audio Connectors
Description CONN JACK STEREO 3.5MM R/A / 3.5 MM AUDIO JACK
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer CUI Devices
Packaging Tray
Connector Type Phone Jack
Gender Female
Signal Lines Stereo (3 Conductor, TRS)
Industry Recognized Mating Diameter 3.50mm (0.141", 1/8", Mini Plug) - Headphone
Actual Diameter 0.142" (3.60mm)
Number of Positions/Contacts 3 Conductors, 5 Contacts
Internal Switch(s) Single Switch
Mounting Style Through Hole, Right Angle
Termination Solder
Shielding Shielded
Features Grounding Tab
Temperature Range - Operating -25°C ~ 85°C
Voltage - Rated 12V
Current Rating (Amps) 1A
Mating Length/Depth 0.551" (14.00mm)
Contact Material - Plating Tin
Body Material Brass
Body Color Black
Housing Material Polyamide (PA66), Nylon 6/6
Contact Material Brass; Copper Alloy
Manufacturer Pack Quantity 186
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 809292-SJ-3598
Ultra Librarian 3D Model Ultra Librarian SJ-3598 CAD Model

Description

The supply and demand status of this product is limited.

  • Mounting Style: Through-hole, right-angle
  • Grounding Tab: Yes
  • Connector Type: Phone Jack
  • Termination: Solder
  • Contact Material: Brass and copper alloy
  • Housing Material: Polyamide (PA66), Nylon 6/6
  • Voltage Rating: 12V
