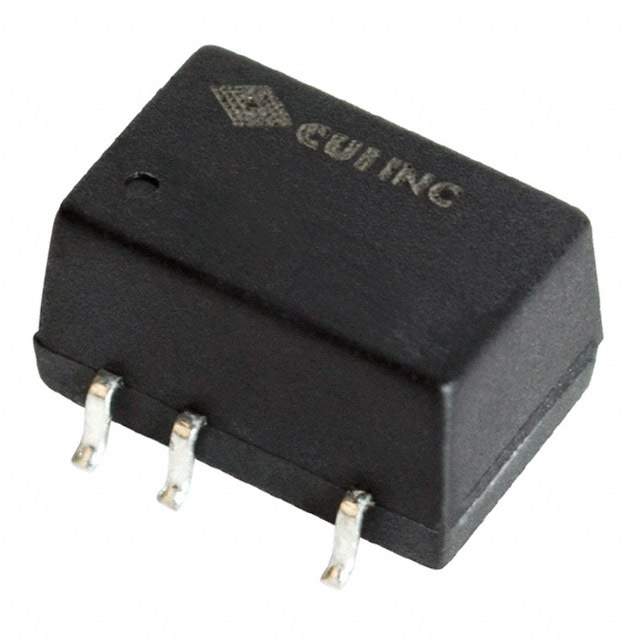

PDS1-S5-S5-M Real Image
Same model may have multiple batches, images only for reference.

PDS1-S5-S5-M

Part No PDS1-S5-S5-M
Manufacturer CUI Inc.
Catalog PMIC - Voltage Regulators - Linear + Switching
Description DC DC CONVERTER 5V 1W / Isolated Module DC DC Converter 1 Output 5V 200mA 4.5V - 5.5V Input
Datasheet
PDS1-S5-S5-M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Mfr CUI Inc.
Series PDS1-M (1W)
Package Tube
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 4.5V
Voltage - Input (Max) 5.5V
Voltage - Output 1 5V
Current - Output (Max) 200mA
Power (Watts) 1 W
Voltage - Isolation 1.5 kV
Applications ITE (Commercial)
Features SCP
Temperature Range - Operating -40°C ~ 105°C (With Derating)
Efficiency 80%
Mounting SMD (SMT)
Package / Case 8-SMD Module, 5 Leads
Dimension 0.50" L x 0.33" W x 0.29" H (12.7mm x 8.3mm x 7.3mm)
Approval Agency EN, UL
Standard Number 55024; 55032 Class A; 60950-1
Base Product Number PDS1-S5
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.40.9580
Other Names 102-4206,PDS1S5S5M,PDS1-S5-S5-M-ND
Standard Package 38
Win Source Part Number 1215285-PDS1-S5-S5-M
Ultra Librarian 3D Model Ultra Librarian PDS1-S5-S5-M CAD Model

Description

The PDS1-S5-S5-M is an isolated module from CUI Inc. that is ideal for use in various power supply applications.

  • Power: 1W
  • Efficiency: 80%
  • Voltage Isolation: 1.5kV
  • Current Output: 200mA
  • Input Voltage Range: 4.5V to 5.5V
  • Output Voltage: 5V
  • Mounting Type: Surface Mount
  • Package: 8-SMD module
  • Leads: 5
  • Temperature Range: -40°C to 105°C
  • RoHS Compliant: Yes
