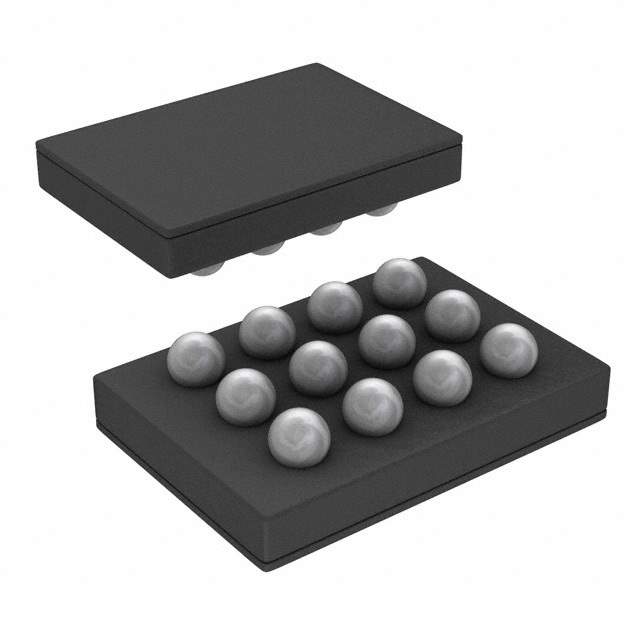

LM3686TLX-AAED/NOPB Real Image
Same model may have multiple batches, images only for reference.

LM3686TLX-AAED/NOPB

Part No LM3686TLX-AAED/NOPB
Manufacturer Texas Instruments
Catalog PMIC - Voltage Regulators - Linear + Switching
Description IC REG TRPL BUCK/LDO SYNC 12USMD
Datasheet
LM3686TLX-AAED/NOPB Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Texas Instruments
Packaging Reel - TR
Status Obsolete(EOL)
Topology Step-Down (Buck) Synchronous (1), Linear (LDO) (2)
Purpose Any Function
Number of Outputs 3
Frequency - Switching 3MHz
Voltage/Current - Output 1 1.2V, 600mA
Voltage/Current - Output 2 1.8V, 350mA
Voltage/Current - Output 3 2.8V, 300mA
w/LED Driver No
w/Supervisor No
w/Sequencer No
Supply Voltage - Operating 2.7 V to 5.5 V
Temperature Range - Operating -40°C to 85°C
Mounting SMD (SMT)
Case / Package 12-DSBGA
Win Source Part Number 071293-LM3686TLX-AAED/NOPB
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian LM3686TLX-AAED/NOPB CAD Model

Description

The Texas Instruments LM3686TLX-AAED/NOPB is a high-quality, dual-output mobile power supply device designed and manufactured by Texas Instruments, a globally renowned leader in semiconductor technology.

  • Converter 1 Frequency: 2MHz
  • Converter 2 Frequency: 3MHz
  • Input voltage range: 2.7V to 5.5V
  • Protective Features: Over-voltage, under-voltage, and over-temperature protection
  • Package: micro SMD
