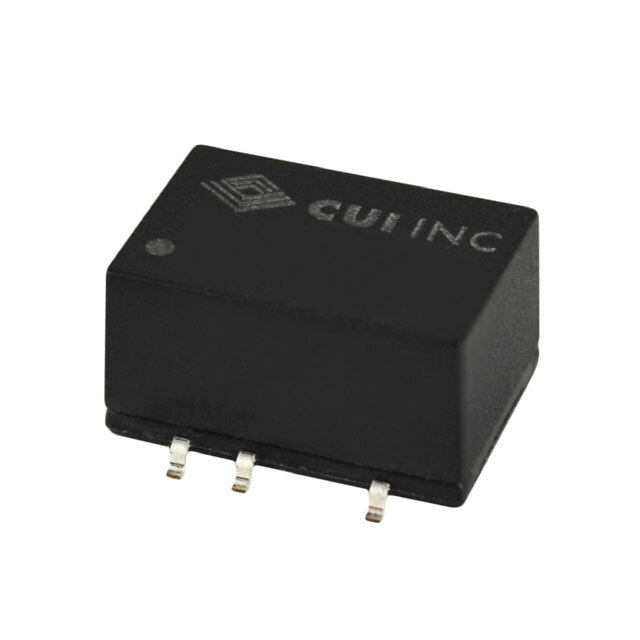

PCN1-S5-S5-M-TR CUI Inc. – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

PCN1-S5-S5-M-TR

Part No PCN1-S5-S5-M-TR
Manufacturer CUI Inc.
Catalog Board Mount AC DC Converters
Description DC DC CONVERTER 5V 1W
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board MountDC DC Converters
Mfr CUI Inc.
Series PCN1-M (1W)
Part Status Active
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 4.5V
Voltage - Input (Max) 5.5V
Voltage - Output 1 5V
Current - Output (Max) 200mA
Power (Watts) 1 W
Voltage - Isolation 1.5 kV
Applications ITE (Commercial)
Features SCP
Operating Temperature -40°C ~ 100°C
Efficiency 79%
Mounting Type Surface Mount
Package / Case 8-SMD Module, 5 Leads
Size / Dimension 0.54" L x 0.39" W x 0.29" H (13.7mm x 9.8mm x 7.4mm)
Approval Agency EN
Standard Number 55032 Class A
Base Product Number PCN1-S5
Ultra Librarian 3D Model Ultra Librarian PCN1-S5-S5-M-TR CAD Model
