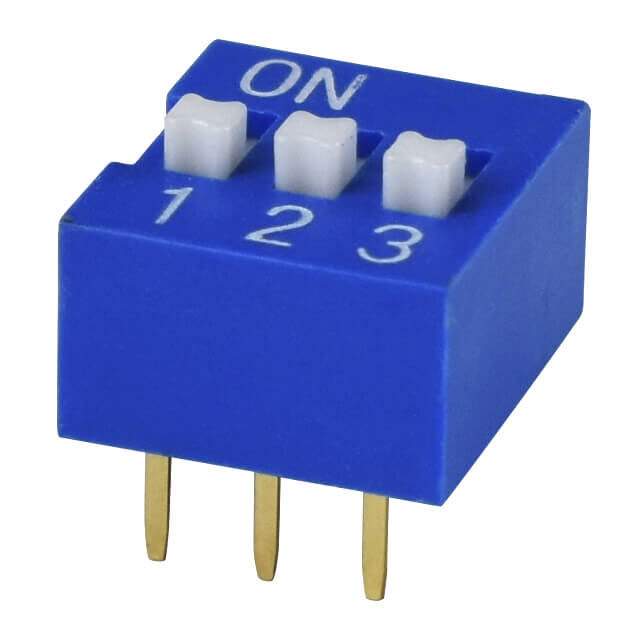

DS01-254-S-03BE Real Image
Same model may have multiple batches, images only for reference.

DS01-254-S-03BE

Part No DS01-254-S-03BE
Manufacturer CUI Inc.
Catalog DIP Switches
Description DIP SWITCH, SPST, 2.54 PITCH, RA  /  Dip Switch SPST 3 Position Through Hole Slide (Standard) Actuator 25mA 24VDC
Datasheet
DS01-254-S-03BE Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>DIP Switches
Mfr CUI Devices
Series DS01-254
Package Tube
Circuit SPST
Number of Positions 3
Current Rating (Amps) 25mA
Voltage Rating 24VDC
Actuator Type Slide (Standard)
Actuator Level Raised
Contact Material Copper Alloy
Contact Finish Gold
Height Above Board 0.264" (6.70mm)
Mounting Type Through Hole
Termination Style PC Pin
Pitch 0.100" (2.54mm), Full
Washable No
Temperature Range - Operating -40°C ~ 85°C
Body Material Polybutylene Terephthalate (PBT)
Length 0.356" (9.04mm)
Electrical Life 2,000 Cycles
Base Product Number DS01-254
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9065
Other Names 2223-DS01-254-S-03BE
Standard Package 50
Win Source Part Number 1018100-DS01-254-S-03BE
Ultra Librarian 3D Model Ultra Librarian DS01-254-S-03BE CAD Model

Description

The DS01-254-S-03BE is a SPST circuit DIP switch from CUI Devices.

  • Switch Type: DIP
  • Circuit: SPST
  • Mounting Type: Through Hole
  • Number of Positions: 3
  • Pitch: 0.100" (2.54mm), Full
  • Termination Style: PC Pin
  • Actuator Level: Raised
  • Contact Finish: Gold
  • Contact Material: Copper Alloy
  • Electrical Life: 2,000 Cycles
  • Voltage Rating: 24VDC
  • Height Above Board: 0.264" (6.70mm)
  • Length: 0.356" (9.04mm)
  • Operating Temperature: -40°C to 85°C
  • Body Material: Polybutylene Terephthalate (PBT)
  • Package: Tube
  • Washable: No
  • Current Rating: 25mA
  • REACH: Unaffected
  • HTSUS: 8536.50.9065
