Same model may have multiple batches, images only for reference.

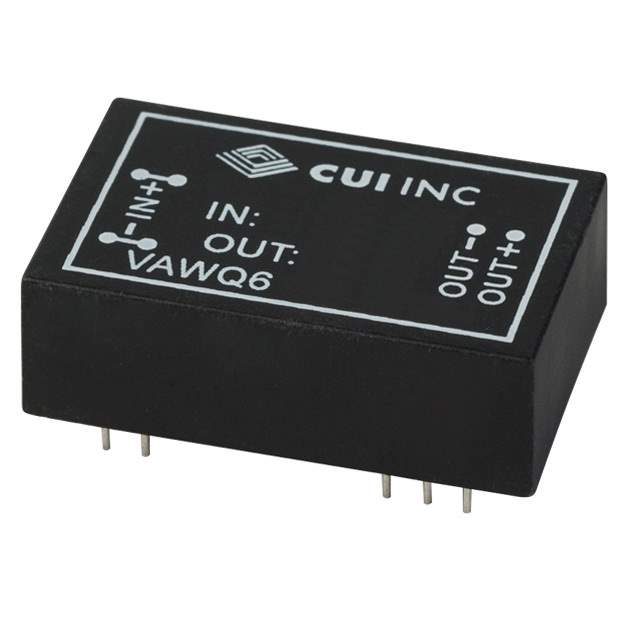

VAWQ6-Q24-D12H Real Image
Same model may have multiple batches, images only for reference.

VAWQ6-Q24-D12H

Part No VAWQ6-Q24-D12H
Manufacturer CUI Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-12V 6W / Isolated Module DC DC Converter 2 Output 12V -12V 230mA, 230mA 9V - 36V Input
Datasheet
VAWQ6-Q24-D12H Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Manufacturer CUI Inc.
Packaging Tube
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 9V
Voltage - Input (Max) 36V
Voltage - Output 1 12V
Voltage - Output 2 -12V
Current - Output (Max) 230mA, 230mA
Power (Watts) 6 W
Voltage - Isolation 3 kV
Applications ITE (Commercial)
Features SCP
Temperature Range - Operating -25°C ~ 71°C
Efficiency 80%
Mounting Through Hole
Case / Package 24-DIP Module, 15 Leads
Size / Dimension 1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm)
Base Product Number VAWQ6
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.40.9580
Other Part Number VAWQ6Q24D12H,659-40590R,102-1319
Standard Package 10
Win Source Part Number 1320594-VAWQ6-Q24-D12H
Ultra Librarian 3D Model Ultra Librarian VAWQ6-Q24-D12H CAD Model

Description

The CUI Inc. VAWQ6-Q24-D12H is an isolated module DC-DC converter, designed for use in commercial applications.

  • Power: 6W
  • Voltage Isolation: 3kV
  • Outputs: two outputs
  • Current Output: 230mA each
  • Voltage Input Range: 9V to 36V
  • Package: 24-DIP module, 15 leads
  • Features: SCP
  • Operating Temperature: -25°C to 71°C
  • RoHS Compliant: Yes
  • ECCN: EAR99
