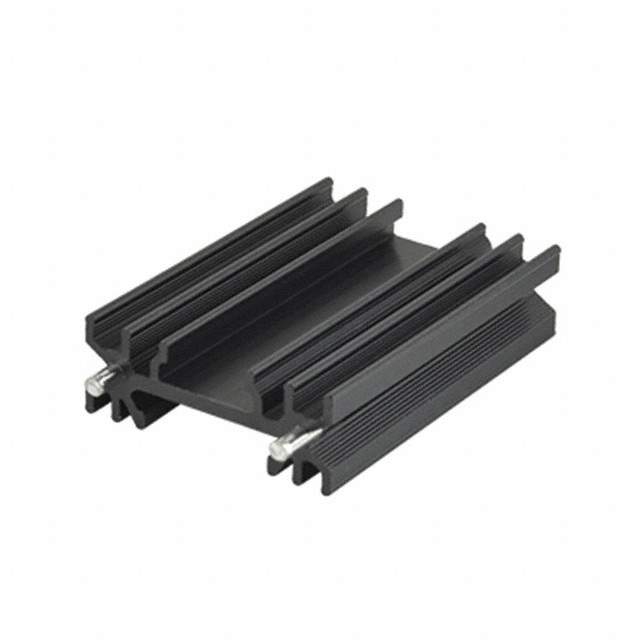

HSE-B20380-040H-01 Real Image
Same model may have multiple batches, images only for reference.

HSE-B20380-040H-01

Part No HSE-B20380-040H-01
Manufacturer CUI Inc.
Catalog Thermal - Heat Sinks
Description HEAT SINK, EXTRUSION, TO-220, 38 / Heat Sink TO-220 Aluminum Alloy 7.3W @ 75°C Board Level, Vertical
Datasheet
HSE-B20380-040H-01 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Fans, Thermal Management - Thermal - Heat Sinks
Mfr CUI Devices
Series HSE
Package Box
Type Board Level, Vertical
Package Cooled TO-220
Attachment Method PC Pin
Shape Rectangular, Angled Fins
Length 1.496" (38.00mm)
Width 1.359" (34.50mm)
Fin Height 0.492" (12.50mm)
Power Dissipation @ Temperature Rise 7.3W @ 75°C
Thermal Resistance @ Forced Air Flow 5.77°C/W @ 200 LFM
Thermal Resistance @ Natural 10.27°C/W
Material Aluminum Alloy
Material Finish Black Anodized
Base Product Number HSE-B20380
Standard Package 1,200
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8473.30.5100
Win Source Part Number 1339654-HSE-B20380-040H-01
Ultra Librarian 3D Model Ultra Librarian HSE-B20380-040H-01 CAD Model

Description

The HSE-B20380-040H-01 is a board level, vertical heat sink from CUI Devices, designed for use in electronic devices that require thermal management.

  • Manufacturer: CUI Devices
  • Type: Board Level, Vertical Heat Sink
  • Features: Angled Fins
  • Package: TO-220
  • Power Dissipation: 7.3W @ 75°C Temperature Rise
  • Thermal Resistance (Forced Air): 5.77°C/W @ 200 LFM
  • Thermal Resistance (Natural): 10.27°C/W
  • Material: Aluminum Alloy
  • Finish: Black Anodized
  • Fin Height: 0.492" (12.50mm)
  • Length: 1.496" (38.00mm)
  • Width: 1.359" (34.50mm)
  • Attachment Method: PC Pins
  • Packaging: Box
  • Standard Package: 1,200
