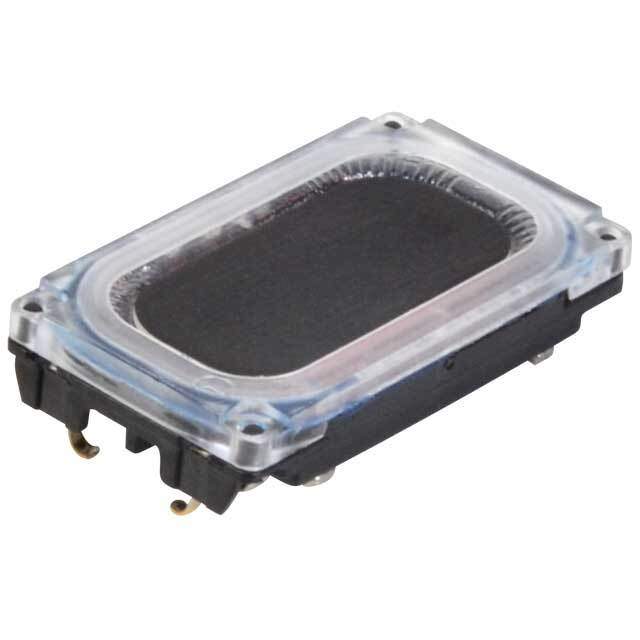

CDS-16098A Real Image
Same model may have multiple batches, images only for reference.

CDS-16098A

Part No CDS-16098A
Manufacturer CUI Inc.
Catalog Speakers
Description SPEAKER 8OHM 700MW TOP PORT 86DB / Speakers Neodymium Iron Boron 500Hz 1W 89dBA 8Ohm Rectangular Solder Lug
Datasheet
CDS-16098A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Audio Products
Manufacturer CUI Inc.
Series CDS
Packaging Tray
Part Status Obsolete(EOL)
Type Magnetic
Frequency Range 100Hz ~ 20kHz
Impedance 8 Ohm
Sound Pressure Level (SPL) 86dB
Power - Rated 700mW
Power - Max 1W
Port Location Top
Shape Rectangular
Material - Cone PET
Material - Magnet Nd-Fe-B
Termination Spring Type
Dimension 0.630" L x 0.354" W (16.00mm x 9.00mm)
Height - Seated (Maximum) 0.142" (3.60mm)
Win Source Part Number 773042-CDS-16098A
Popularity Medium
Supply and Demand Status Limited
Family Name CDS-16098A
Introduction Date March 25, 2015
ECCN EAR99
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian CDS-16098A CAD Model

Description

The CUI Inc. CDS-16098A is a rectangular magnetic type speaker with an impedance of 8 Ohm and a maximum power of 1W.

  • Frequency Range: 100Hz ~ 20kHz
  • Sound Pressure Level (SPL): 86dB
  • Supply and Demand Status: Limited
  • Packaging: Tray
  • Dimension: 0.630" L x 0.354" W (16.00mm x 9.00mm)
  • Height: 0.142" (3.60mm)
  • Cone Material: PET
  • Magnet: Nd-Fe-B
