Same model may have multiple batches, images only for reference.

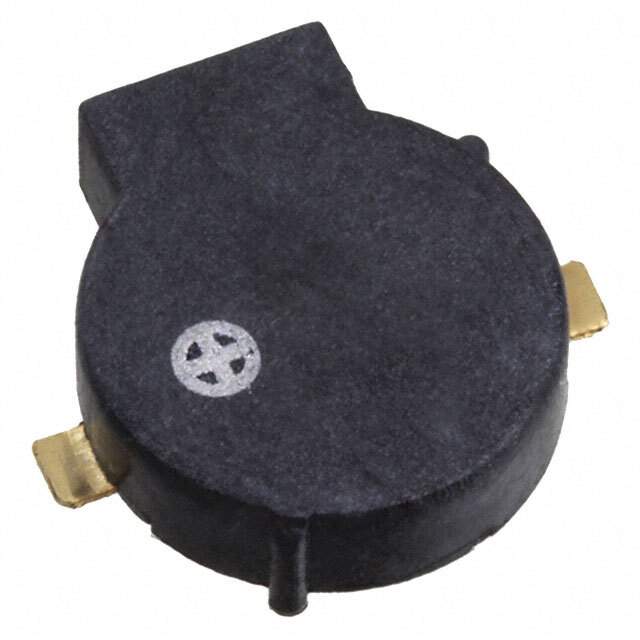

CBT-09427-SMT-TR Real Image
Same model may have multiple batches, images only for reference.

CBT-09427-SMT-TR

Part No CBT-09427-SMT-TR
Manufacturer CUI Inc.
Catalog Alarms, Buzzers, and Sirens
Description BUZZER MAGNETIC 3.6V 9MM SMD / Buzzers Transducer, Externally Driven Magnetic 3.6 V 110mA 2.73kHz 83dB @ 3.6V, 10cm Surface Mount Solder Pads
Datasheet
CBT-09427-SMT-TR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Audio Products - Alarms, Buzzers, and Sirens
Mfr CUI Devices
Package Tape & Reel
Driver Circuitry Transducer, Externally Driven
Input Type Zero-Peak Signal
Voltage - Rated 3.6 V
Voltage Range 2.5 ~ 4.5V
Frequency 2.73kHz
Technology Magnetic
Operating Mode Single Tone
Sound Pressure Level (SPL) 83dB @ 3.6V, 10cm
Current - Supply 110mA
Port Location Side
Temperature Range - Operating -40°C ~ 85°C
Mounting Type Surface Mount
Termination Solder Pads
Size / Dimension 0.354" Dia (9.00mm)
Height - Seated (Max) 0.106" (2.70mm)
Standard Package 800
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8531.80.9041
Win Source Part Number 1336861-CBT-09427-SMT-TR
Ultra Librarian 3D Model Ultra Librarian CBT-09427-SMT-TR CAD Model

Description

The CBT-09427-SMT-TR is a magnetic buzzer manufactured by CUI Devices. CUI Devices

  • Type: Magnetic Buzzer
  • Tone: Single Tone
  • Frequency: 2.73kHz
  • Sound Pressure Level: 83dB @ 3.6V and 10cm
  • Input Type: Zero-Peak Signal
  • Voltage Range: 2.5V to 4.5V
  • Rated Voltage: 3.6V
  • Current Supply: 110mA
  • Mounting Type: Surface Mountable
  • Diameter: 0.354 inches
  • Height: 0.106 inches
  • Operating Temperature: -40°C to 85°C
