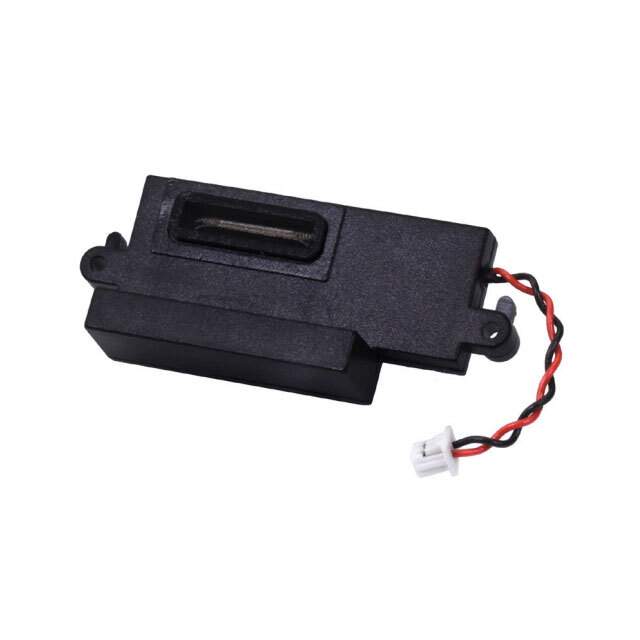

CES-361810-18PM Real Image
Same model may have multiple batches, images only for reference.

CES-361810-18PM

Part No CES-361810-18PM
Manufacturer CUI Inc.
Catalog Speakers
Description 35.9 X 18.5 MM, ENCLOSED, RECTAN / 8 Ohms General Purpose, Enclosure Included Speaker 1 W 800 Hz ~ 10 kHz Top Rectangular
Datasheet
CES-361810-18PM Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Audio Products>Speakers
Mfr CUI Devices
Series CES
Package Tray
Technology Magnetic
Type General Purpose, Enclosure Included
Frequency Range 800 Hz ~ 10 kHz
Frequency - Self Resonant 1kHz
Impedance 8 Ohms
Efficiency - dBA 90.50
Efficiency - Testing 1W/100mm
Efficiency - Type Sound Pressure Level (SPL)
Power - Rated 1 W
Power - Max 1.2 W
Port Location Top
Shape Rectangular
Material - Cone Polyetheretherketone (PEEK)
Material - Magnet Nd-Fe-B
Termination Wire Leads with Connector
Dimension 1.610" L x 0.728" W (40.90mm x 18.50mm)
Height - Seated (Max) 0.421" (10.70mm)
Temperature Range - Operating -30°C ~ 70°C
Distortion Rating 10% Max @ 1kHz, 1W, 100mm
Base Product Number CES-361810
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8518.29.8000
Other Names 2223-CES-361810-18PM
Standard Package 28
Win Source Part Number 1138352-CES-361810-18PM
Ultra Librarian 3D Model Ultra Librarian CES-361810-18PM CAD Model

Description

The CES-361810-18PM is a general-purpose, enclosed speaker designed for use in audio products.

  • Frequency Range: 800 Hz ~ 10 kHz
  • Impedance: 8 ohms
  • Shape: Rectangular
  • Dimension: 1.610" L x 0.728" W (40.90mm x 18.50mm)
  • Sound Pressure Level (SPL): 90.50 dBA
  • Efficiency: 1W/100mm
  • Power Rating: 1W
  • Maximum Power: 1.2W
  • Operating Temperature: -30°C ~ 70°C
  • Termination Style: Wire lead with connector
  • Mounting: Through a hole
  • Package: Tray
  • Standard Package: 28
