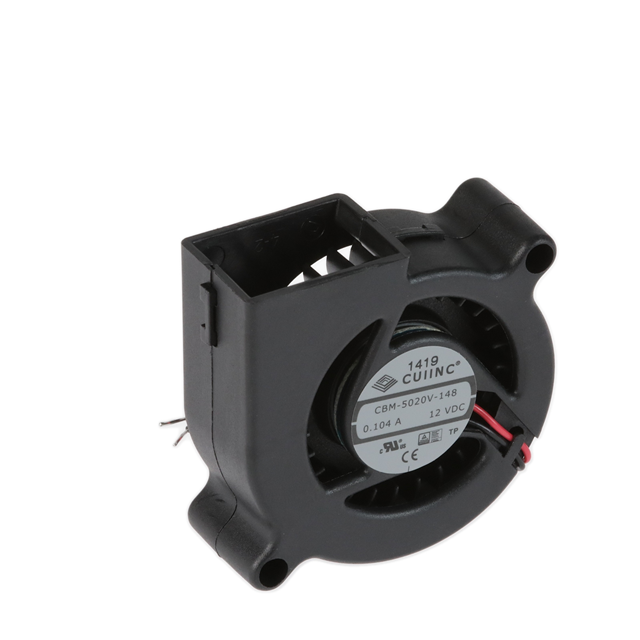

CBM-5020V-148 Real Image
Same model may have multiple batches, images only for reference.

CBM-5020V-148

Part No CBM-5020V-148
Manufacturer CUI Inc.
Catalog DC Fans
Description FAN BLOWER 50X20MM 12VDC WIRE / Fan Blower 12VDC Square/Rounded - 50mm L x 50mm H omniCOOL™ Magnetic Sleeve 5.2 CFM (0.146m³/min) 2 Wire Leads
Datasheet
CBM-5020V-148 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Fans, Thermal Management>DC Brushless Fans (BLDC)
Mfr CUI Devices
Series CBM-50V
Package Tray
Product Status Obsolete
Voltage - Rated 12VDC
Dimension Square/Rounded - 50mm L x 50mm H
Width 20.00mm
Air Flow 5.2 CFM (0.146m³/min)
Static Pressure 0.560 in H2O (139.5 Pa)
Bearing Type omniCOOL™ Magnetic Sleeve
Fan Type Blower
Features Auto Restart
Noise 33.0dB(A)
Power (Watts) 1.3 W
RPM 4800 RPM
Termination 2 Wire Leads
Temperature Range - Operating 14 ~ 158°F (-10 ~ 70°C)
Approval Agency CE, cURus, TUV
Weight 0.073 lb (33.11 g)
Current Rating (Amps) 0.104A
Voltage Range 6 ~ 13.8VDC
Material - Frame Polybutylene Terephthalate (PBT)
Material - Blade Polybutylene Terephthalate (PBT)
Lifetime @ Temp. 70000 Hrs @ 40°C
Base Product Number CBM-5020
MSL Level Not Applicable
ECCN EAR99
HTSUS 8414.59.6560
Other Names 102-5585,CBM-5020V-148-ND
Standard Package 200
Win Source Part Number 1158656-CBM-5020V-148
Ultra Librarian 3D Model Ultra Librarian CBM-5020V-148 CAD Model

Description

The CUI Devices CBM-5020V-148 is a DC brushless fan designed for thermal management.

  • Voltage Range: 6 ~ 13.8VDC
  • Rated Voltage: 12VDC
  • Power (Watts): 1.3 W
  • Lifetime: 70000 Hrs @ 40°C
  • Air Flow: 5.2 CFM (0.146m³/min)
  • Static Pressure: 0.560 in H2O (139.5 Pa)
  • Fan Type: Blower
  • Noise Level: 33.0dB(A)
  • RPM: 4800 RPM
  • Frame and Blade Material: Polybutylene Terephthalate (PBT)
  • Operating Temperature Range: 14 ~ 158°F (-10 ~ 70°C)
  • Package: Tray
  • Standard Package: 200
  • Status: Obsolete
  • Popularity: Low
