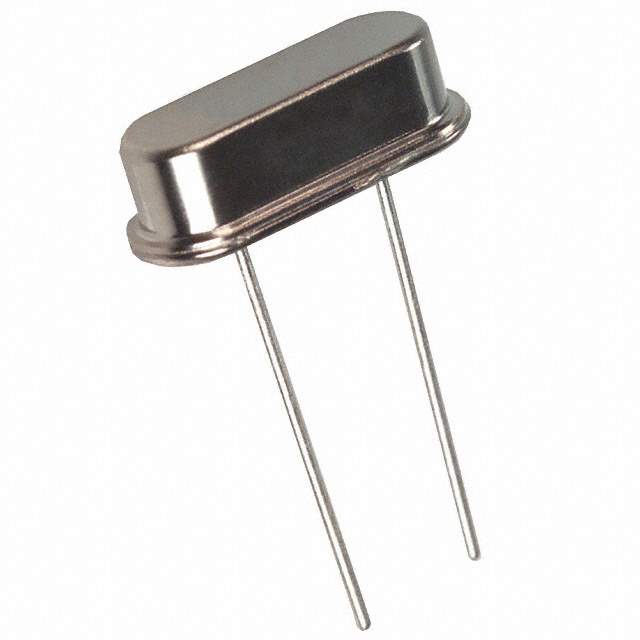

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Crystals
Mfr CTS-Frequency Controls
Series ATS
Package Bulk
Type MHz Crystal
Frequency 20.48 MHz
Frequency Stability ±50ppm
Frequency Tolerance ±30ppm
Load Capacitance 20pF
ESR (Equivalent Series Resistance) 30 Ohms
Operating Mode Fundamental
Temperature Range - Operating -20°C ~ 70°C
Mounting Type Through Hole
Package / Case HC-49/US
Dimension 0.427" L x 0.177" W (10.85mm x 4.50mm)
Height - Seated (Max) 0.145" (3.68mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.60.0060
Other Names CTX417
Standard Package 100
Win Source Part Number 1035569-ATS204
Ultra Librarian 3D Model Ultra Librarian ATS204 CAD Model

Description

The CTS-Frequency Controls ATS204 is a 20.48 MHz crystal that has a frequency stability of ±50ppm and a frequency tolerance of ±30ppm.

  • ESR: 30 Ohms
  • Load Capacitance: 20pF
  • Mounting Type: through-hole
  • Package: HC-49/US
  • Temperature Range: -20°C ~ 70°C
  • Height: 0.145" (3.68mm)
  • REACH: unaffected
  • ECCN: EAR99
