ABM3-25.000MHZ-B2-T Real Image ABM3-25.000MHZ-B2-T real image15003
Same model may have multiple batches, images only for reference.
ABM3-25.000MHZ-B2-T Real Image ABM3-25.000MHZ-B2-T real image15003
ABM3-25.000MHZ-B2-T Real Image ABM3-25.000MHZ-B2-T real image15003
Same model may have multiple batches, images only for reference.

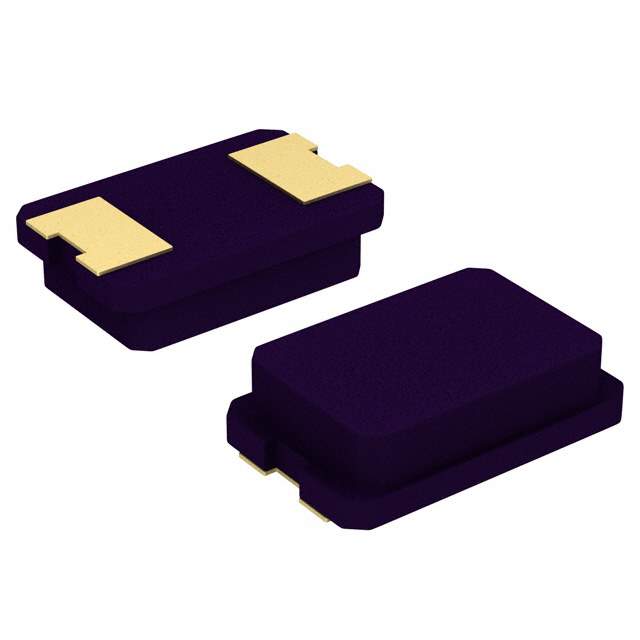

ABM3-25.000MHZ-B2-T

Part No ABM3-25.000MHZ-B2-T
Manufacturer Abracon LLC
Catalog Crystals
Description Crystal 25MHz ±20ppm (Tol) ±50ppm (Stability) 18pF FUND 30Ohm 2-Pin Mini-CSMD T/R / CRYSTAL 25.0000MHZ 18PF SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Crystals, Oscillators, Resonators
Manufacturer Abracon LLC
Packaging Reel - TR
Status Active
Type MHz Crystal
Frequency 25MHz
Frequency Stability ±50ppm
Frequency Tolerance ±20ppm
Load Capacitance 18pF
ESR 30 Ohm
Operating Mode Fundamental
Temperature Range - Operating -20°C to 70°C
Mounting SMD (SMT)
Dimension 0.197" L x 0.126" W (5.00mm x 3.20mm)
Height - Seated (Max) 0.051" (1.30mm)
Win Source Part Number 1011535-ABM3-25.000MHZ-B2-T
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Application Field Used in Clock & Timing
Introduction Date May 09, 2002
ECCN EAR99
Country of Origin China
Halogen Free Compliant
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian ABM3-25.000MHZ-B2-T CAD Model

Description

The ABM3-25.000MHZ-B2-T MHz crystal is a high-quality component that provides accurate timing and frequency stability.

  • Manufacturer: Abracon
  • Frequency: 25 MHz
  • Frequency Tolerance: ±20 ppm
  • Series: ABM3
  • Packaging: Reel
  • Height: 0.051" (1.30mm)
