Same model may have multiple batches, images only for reference.

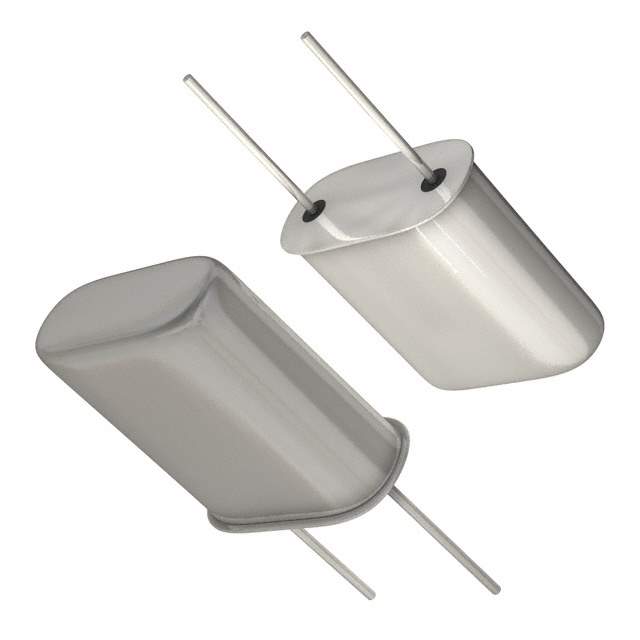

AB-14.31818MHZ-B2 Real Image
Same model may have multiple batches, images only for reference.

AB-14.31818MHZ-B2

Part No AB-14.31818MHZ-B2
Manufacturer Abracon LLC
Catalog Crystals
Description CRYSTAL 14.31818MHZ 18PF TH / 14.31818 MHz ±20ppm Crystal 18pF 25 Ohms HC-49/U
Datasheet
AB-14.31818MHZ-B2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Crystals
Mfr Abracon LLC
Series AB
Package Tape & Reel (TR)
Type MHz Crystal
Frequency 14.31818 MHz
Frequency Stability ±100ppm
Frequency Tolerance ±20ppm
Load Capacitance 18pF
ESR (Equivalent Series Resistance) 25 Ohms
Operating Mode Fundamental
Temperature Range - Operating -20°C ~ 70°C
Mounting Type Through Hole
Package / Case HC-49/U
Dimension 0.453" L x 0.197" W (11.50mm x 5.00mm)
Height - Seated (Max) 0.530" (13.46mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.60.0050
Other Names 535-9004,535-9004-ND,,300-9004,535-AB-14.31818MHZ-B2TR,300-9004-ND
Standard Package 1,000
Win Source Part Number 1046000-AB-14.31818MHZ-B2
Ultra Librarian 3D Model Ultra Librarian AB-14.31818MHZ-B2 CAD Model

Description

The AB-14.31818MHZ-B2 is a MHz crystal device that is used in various electronic applications.

  • Win Source Part Number: 1046000-AB-14.31818MHZ-B2
  • Series: AB
  • Packaging: Tape & Reel (TR)
  • Standard Package: 1000
  • Mounting Type: Through Hole
  • Frequency: 14.31818 MHz
  • Frequency Tolerance: ±20ppm
