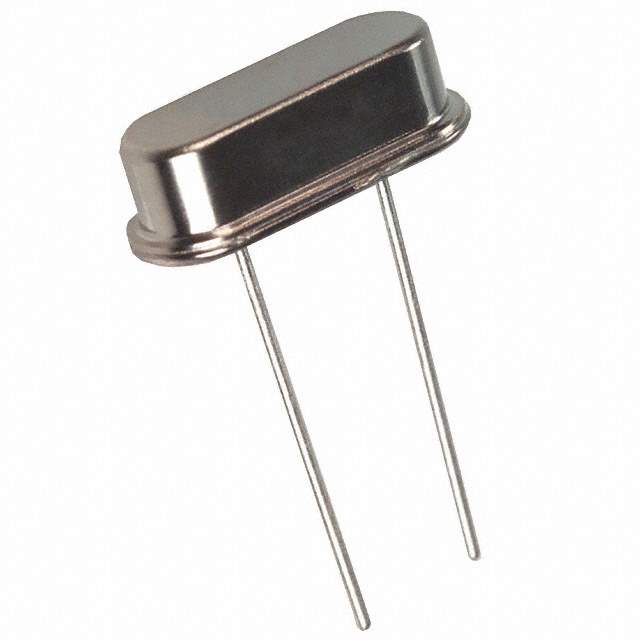

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Crystals, Oscillators, Resonators
Manufacturer CTS-Frequency Controls
Series ATS
Packaging Bulk
Type MHz Crystal
Frequency 12MHz
Frequency Stability ±50ppm
Frequency Tolerance ±30ppm
Load Capacitance Series
ESR (Equivalent Series Resistance) 40 Ohm
Operating Mode Fundamental
Operating Temperature Range -40°C ~ 85°C
Mounting Style Through Hole
Package HC49/US
Dimension 0.427" L x 0.177" W (10.85mm x 4.50mm)
Height - Seated (Maximum) 0.145" (3.68mm)
Win Source Part Number 798401-ATS120-E
Popularity Medium
Supply and Demand Status Balance
Introduction Date February 04, 2000
ECCN EAR99
Halogen Free Compliant
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian ATS120-E CAD Model

Description

The 798401-ATS120-E is a 12MHz MHz crystal from the ATS series of CTS-Frequency Controls.

  • Package: Bulk
  • Mounting: Through-hole
  • Temperature Range: -40°C to 85°C
  • Dimensions: 0.427" L x 0.177" W (10.85mm x 4.50mm)
  • ESR: 40 Ohm
  • Frequency Stability: ±50ppm
  • Frequency Tolerance: ±30ppm
  • Load Capacitance: Series type
  • Mode: Fundamental
  • Category: Crystals, Oscillators, and Resonators
  • Halogen-Free: Yes
  • ECCN: EAR99
