Same model may have multiple batches, images only for reference.

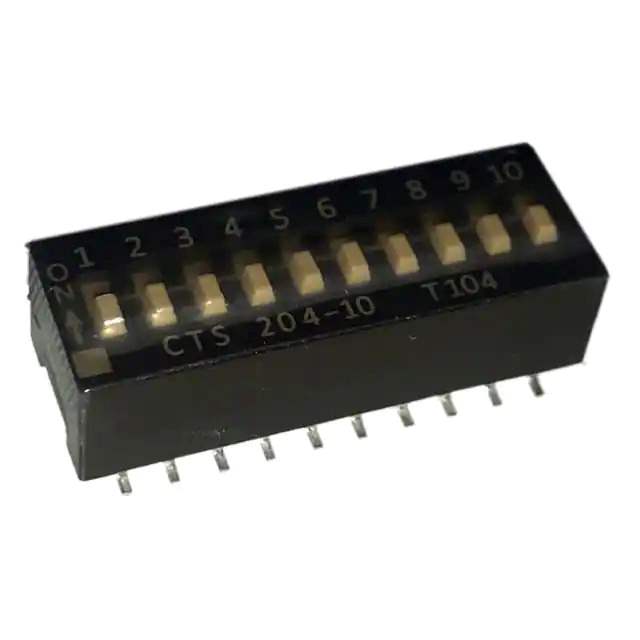

204-10ST Real Image
Same model may have multiple batches, images only for reference.

204-10ST

Part No 204-10ST
Manufacturer CTS Electrocomponents
Catalog DIP Switches
Description SWITCH SLIDE DIP SPST 50MA 24V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - DIP Switches
Mfr CTS Electrocomponents
Series 204
Package Tube
Product Status Active
Circuit SPST
Number of Positions 10
Current Rating (Amps) 50mA
Voltage Rating 24VDC
Actuator Type Slide (Standard)
Actuator Level Raised
Contact Finish Gold
Height Above Board 0.394" (10.00mm)
Mounting Type Surface Mount
Termination Style Gull Wing
Pitch 0.100" (2.54mm), Full
Washable Yes
Features Epoxy Sealed Terminals, Tape Seal
Temperature Range - Operating -55°C ~ 85°C
Body Material Plastic
Length 1.086" (27.58mm)
Electrical Life 5,000 Cycles
Standard Package 20 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9065
California Prop 65 Warning Information
Win Source Part Number 854516-204-10ST
Ultra Librarian 3D Model Ultra Librarian 204-10ST CAD Model

Description

The 854516-204-10ST is a DIP switch in the 204 series.

  • Series: 204
  • Number of Positions: 10
  • Pitch: 0.100" (2.54mm), Full
  • Termination Style: Gull Wing
  • Terminals: Epoxy Sealed with Tape Seal
  • Contact Finish: Gold
  • Package: Tube
  • Material: Plastic
  • Voltage Rating: 24VDC
  • Height Above Board: 0.394" (10.00mm)
  • Length: 1.086" (27.58mm)
  • Standard Package: 20 pcs
  • Circuit: SPST
  • Actuator Type: Slide
  • Electrical Life: 5,000 cycles
  • Washable: Yes
  • Mounting Type: Surface Mount
  • Operating Temperature: -55°C to 85°C
